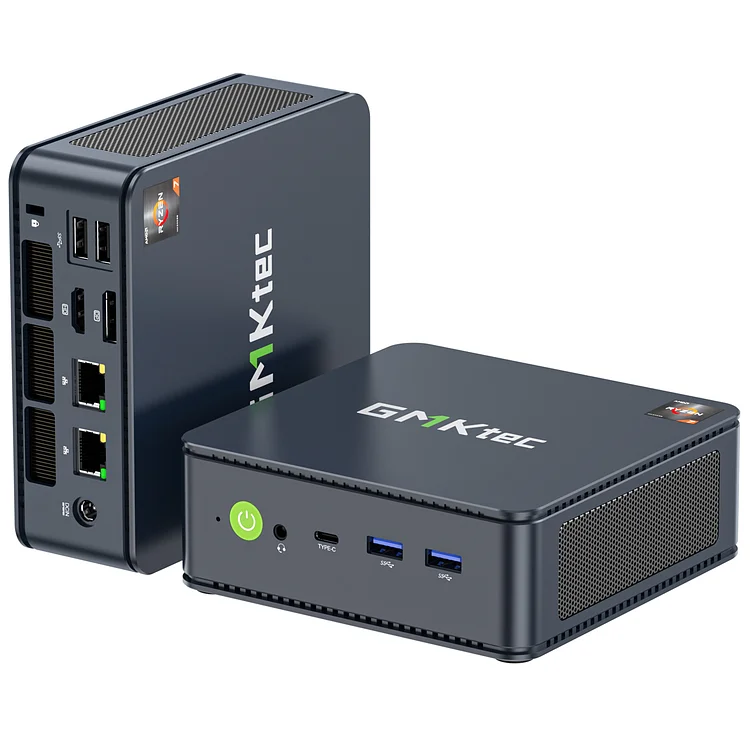

Name: GMKtec NucBox M5 Plus AMD Ryzen™ 7 5825U
Brand: GMKtec
SKU: M5 Plus 0+0 EU 黑
Price: 229.99 EUR
Availability: InStock

Influencer Review
Spezifikation
FAQs

Influencer Review

Spezifikation

CPU	AMD Ryzen™ Prozessor, 8 Kerne/16 Threads, 7nm FP6-Gehäuse, Basisfrequenz 2 GHz, MAX 4,5 GHz, 4 MB L2 Cache/16 MB L3 Cache, TDP 10-35 W AMD Ryzen™ 7 5825U Basisfrequenz: 2,0 GHz, maximale Boost-Frequenz: 4,5 GHz; Maximale Grafikspeicherunterstützung: 16 GB
GPU	AMD Radeon™ Graphics, 8 Kerne mit 2000 MHz GPU-Frequenz
Arbeitsspeicher (RAM)	SO-DIMM*2; DDR4 3200; 16 GB/32 GB verfügbar Dual-Channel-Ausführung
Maximale Speicherkapazität	SO-DIMM*2, unterstützt bis zu 64 GB
Speicher (ROM)	PCIe 3.0 M.2 2280 SSD; 512 GB Unterstützt SATA und PCIe neben DDR Extern nur PCIe
Maximale Speicherkapazität	MAX 2 TB
Videoausgang	Einzelne HDMI+DP+Type-C DP-Ausgänge, unterstützt maximal 4096x2160 Auflösung
Netzwerk	WiFi 6 RZ616 Maximale Übertragungsgeschwindigkeit: 1,2 Gbps BT5.2
Stromversorgung	Eingebaute Knopfzelle, DC IN 19 V/3,42 A
USB-Anschlüsse	USB-A: USB3.2 (Gen1*1)2 (Vorderseite, 10 Gbps); USB2.02 (Rückseite)
HDMI-Ausgänge	HDMI 2.0 (4K@60Hz)*1(Unterstützt maximal 4K60Hz)
DisplayPort-Ausgänge	DisplayPort (4K@60Hz)*1(Unterstützt maximal 4K120Hz)
Typ-C-Port	Type-C (USB 3.1 Gen2, PD, DP/Daten) Volle Funktionalität, 10 Gbps
Audioanschluss	∮3,5 mm, CTIA
Stromanschluss	DC IN 5525-Schnittstelle
Maße	128,8 x 127 x 47,8 mm
Gewicht	528 g (inkl. Verpackung)
Farbe	Schwarz / Blau
Betriebssystem	Windows 11 Pro Standardausführung; Unterstützung für Linux-Systeme

FAQs

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Product Manual

You can download the product manual here: Download Product Manual .

-

Feature In Media

GMKtec M5 Plus

AMD Ryzen™ 7 5825U

8 Kerne/16 Threads, MAX 4,5 GHz, 4 MB L2 Cache/16 MB L3 Cache

AMD Radeon™ Graphics

8 cores with 2000 MHz GPU frequency

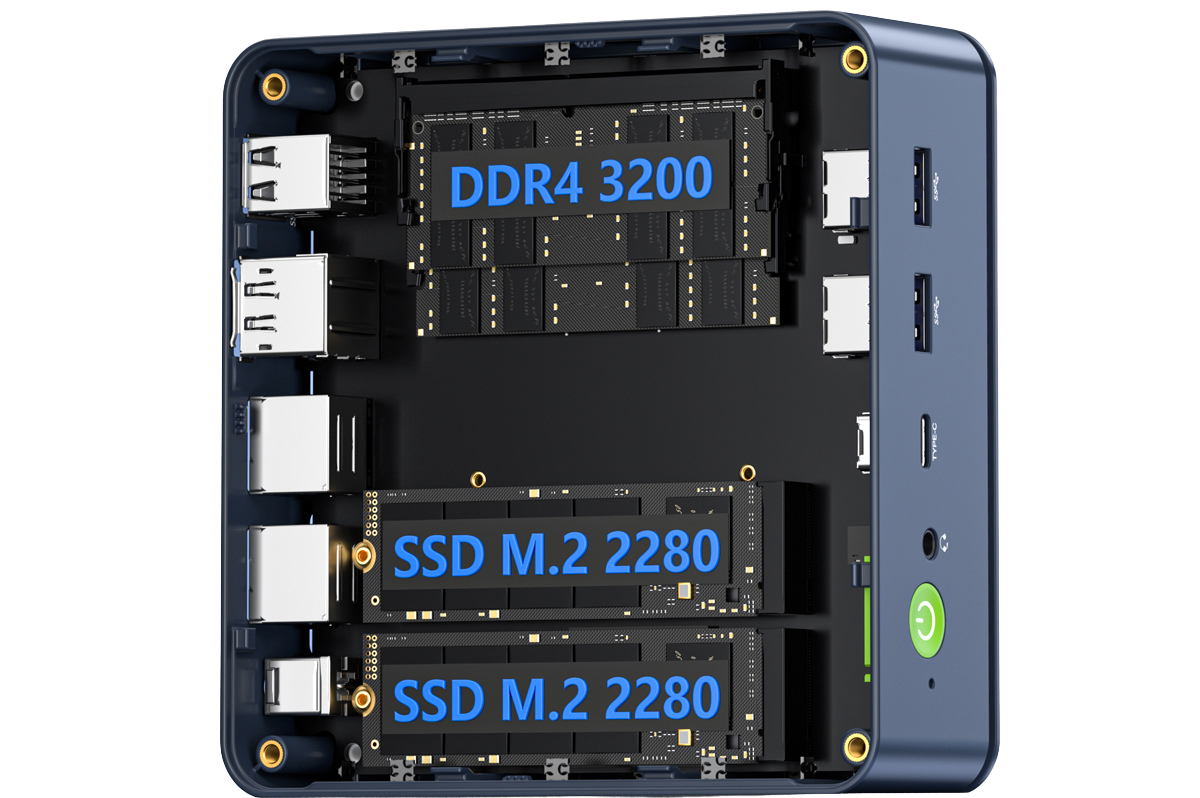

SO-DIMM*2; DDR4 3200

Dual-channel design, supports up to 64 GB

PCIe 3.0 M.2 2280 SSD, MAX 2TB

Supports SATA and PCIe in addition to DDR

Tripe Screens 4K Display

Single HDMI+DP+Type-C DP outputs

WiFi 6E + BT5.2

Maximum transfer speed: 1.2 Gbps

Dual Lan

2X 2.5G

HDMI+DP+TyPeC

4K@60Hz/4K@120Hz

AMD Ryzen™ 7 5825U

8 Kerne/16 Threads, MAX 4,5 GHz, 4 MB L2 Cache/16 MB L3 Cache

AMD Radeon™ Graphics

8 cores with 2000 MHz GPU frequency

SO-DIMM*2; DDR4 3200

Dual-channel design, supports up to 64 GB

PCIe 3.0 M.2 2280 SSD, MAX 2TB

Supports SATA and PCIe in addition to DDR

Tripe Screens 4K Display

Single HDMI+DP+Type-C DP outputs

WiFi 6E + BT5.2

Maximum transfer speed: 1.2 Gbps

Dual Lan

2X 2.5G

HDMI+DP+TyPeC

4K@60Hz/4K@120Hz

Power Meets Efficiency

AMD Ryzen™ 7 5825U processor

Base frequency 2 GHz, MAX 4.5 GHz

8 cores/16 thread

4 MB L2 cache/16 MB L3 cache, TDP 10-35 W

Cinebench R23 Multi-Core Score

AMD Ryzen™ 7 5825U

10751

AMD Ryzen™ 7 5700U

9555

Ryzen 5 5600U

7551

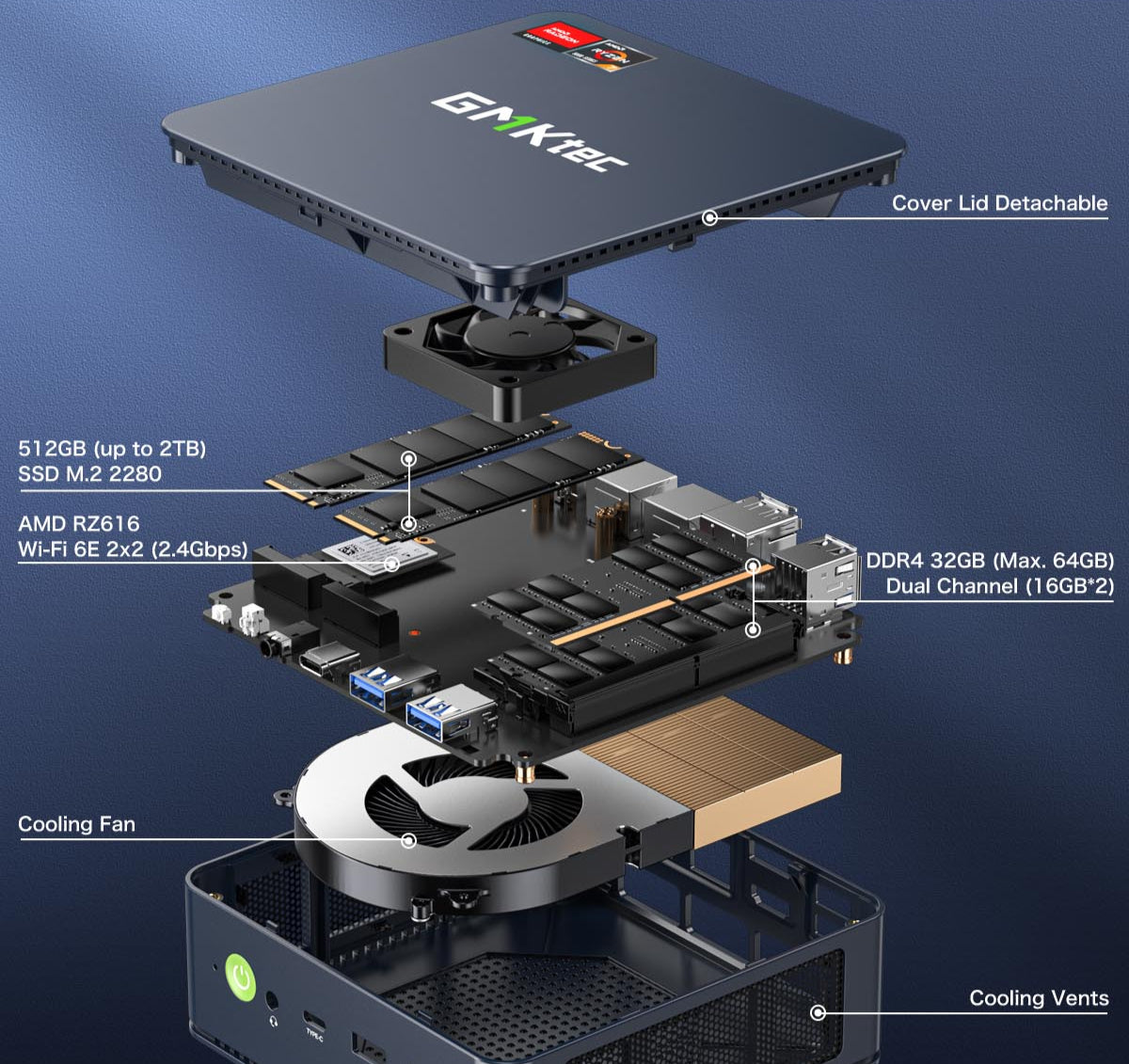

UPGRADE OUIET COOLING FANCopper Cooling Fan &Multiple Exhaust vents

Turbo Cooling

Two-way Convection Air Vents

Silent Fan System

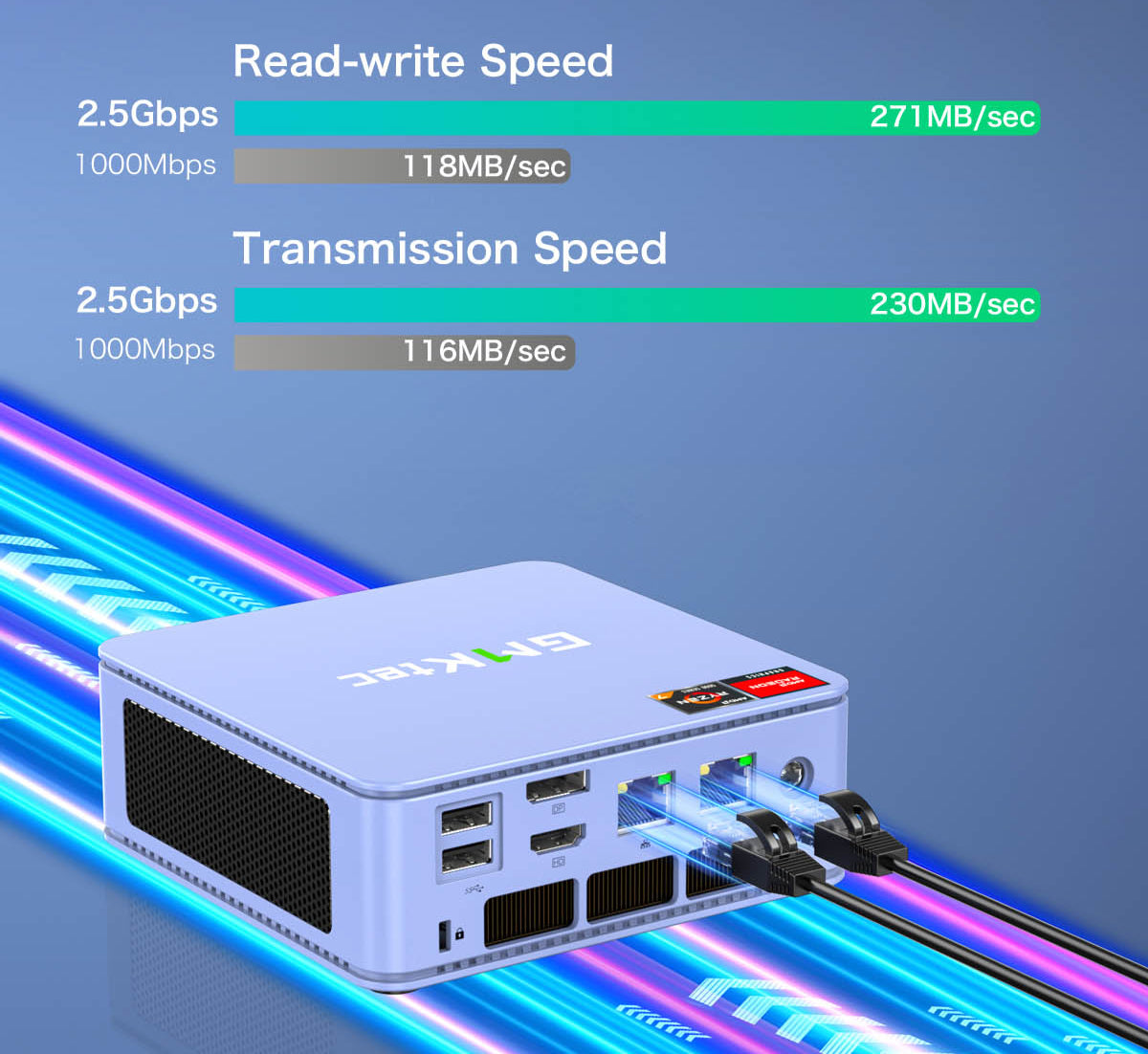

Dual LAN (RJ45) – Netzwerkanschlüsse, kompatibel mit Linux, Ubuntu, ESXi und VMware

DUAL 2.5G HIGH SPEED ETHERNET

Lese-/Schreibgeschwindigkeit

2.5Gbps LAN

2.5× Times

1000MbpS LAN

Supports 3-screen 4K display

1 × HDMI(4K@60Hz)

1 × Type-C support DP/DATA

1 × Display port

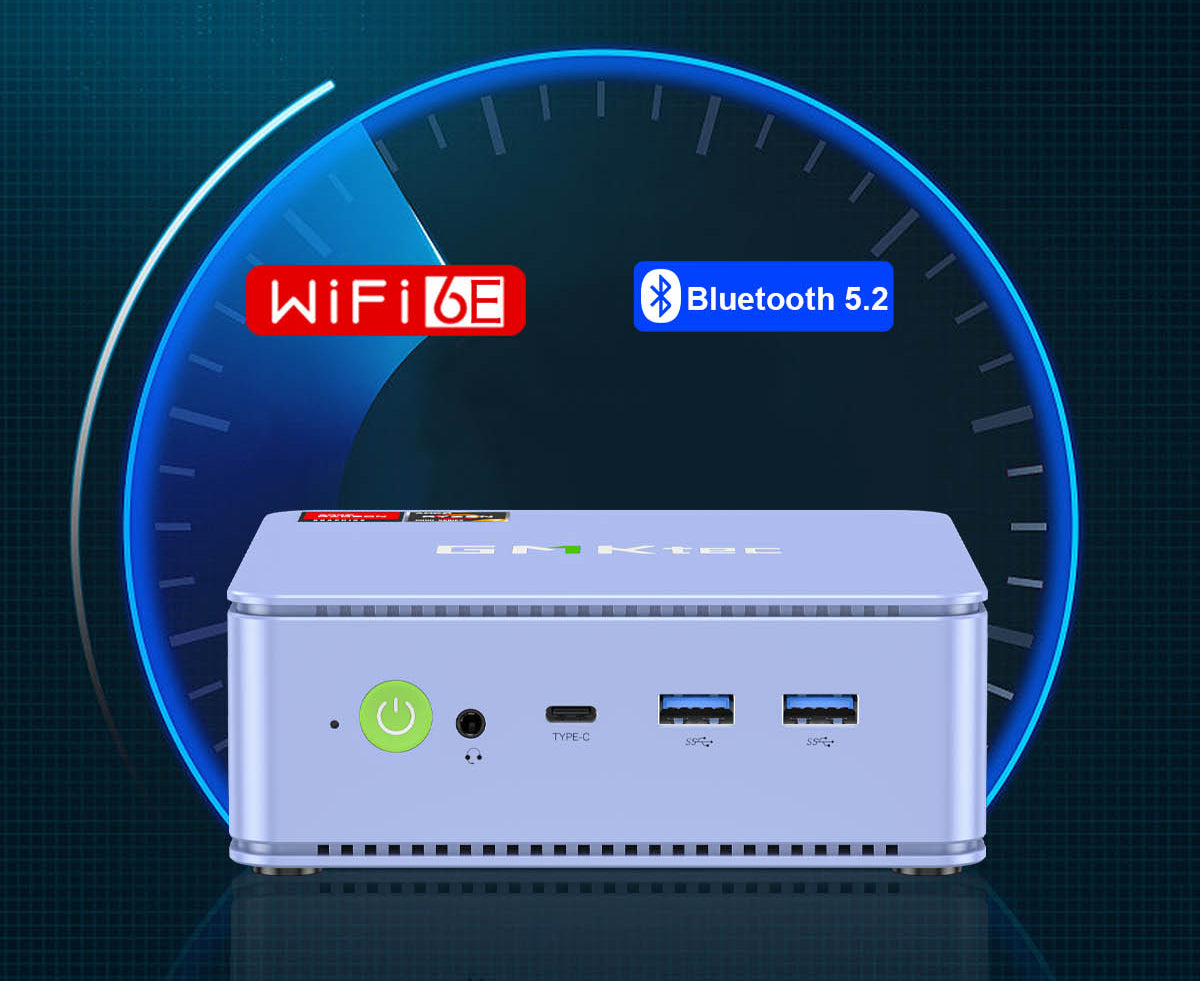

SUPER SPEED WI-FI 6E

Wi-Fi 6E outperforms Wi-Fi 6 with the new 6GHz band, support for up to 320MHz channels, delivering faster, more stable data speeds while staying compatible with Wi-Fi 6/5 devices.

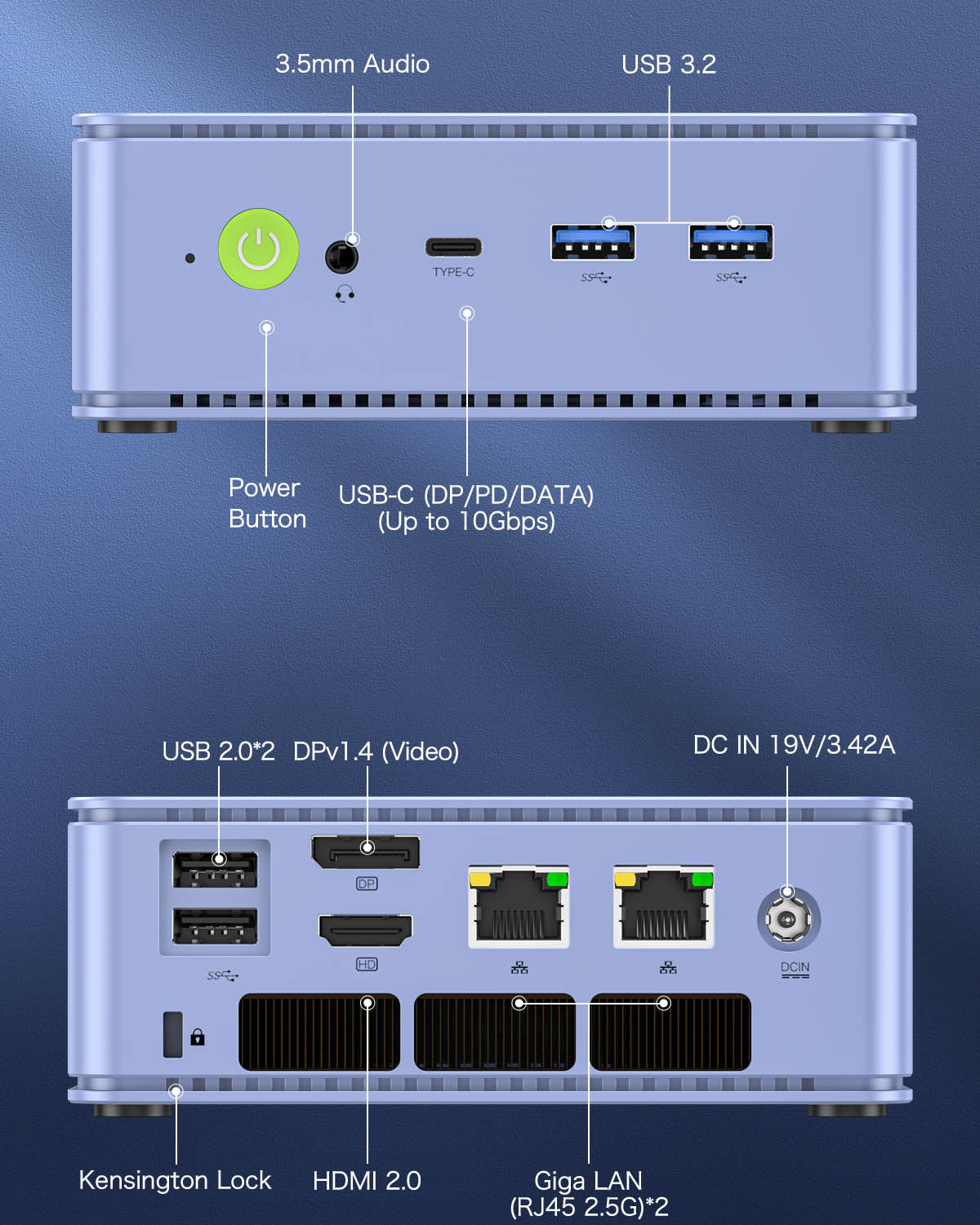

M5 Plus is powered by a built-in button cell and a DC IN 19V/3.42A adapter, offering versatile connectivity: 2 USB 3.2 Gen1 (10Gbps) ports on the front, 2 USB 2.0 ports on the rear, plus a Type-C (USB 3.1 Gen2, PD, DP/Data, 10Gbps) port. For display, it supports HDMI 2.0 (4K@60Hz) and DisplayPort (up to 4K@120Hz). Additional features include a 3.5mm audio jack (CTIA standard) and a DC IN 5525 power interface for reliable connections.
