Mini PCs
| Series | Ryzen 7000 Series, 8 cores / 16 threads, 7nm FP6 package, Base 2.0GHz, Max 4.5GHz |
| Cache | 4MB L2 / 16MB L3 |
| Architecture | "Zen 3" |
| Model | AMD Ryzen™ 7 7730U |
| Socket | TSMC 7nm FinFET |
| GPU | AMD Radeon™ Graphics, 8 cores, 2000MHz |
| Max GPU Memory | 2GB |
| Slots | 2 × SO-DIMM, DDR4 3200MT/s |
| Default | 16GB / 32GB pre-installed |
| Max Capacity | Up to 64GB (2 × 32GB) |
| Default | 2 × M.2 2280 SSD, PCIe 3.0 ×4, 512GB |
| Slot 1 | SATA & PCIe 3.0 ×4 supported |
| Slot 2 | PCIe 3.0 ×4 only |
| Max Expandable | 8TB per slot (up to 16TB total) |
| Built-in Screen | None |
| Video Output | HDMI + DP + Type-C (Max 8K via DP) |
| Wi-Fi | WiFi 6E RZ616 (802.11a/b/g/n/ac/ax), up to 2.4Gbps |
| Bluetooth | BT 5.2 |
| Ethernet | 2 × 2.5G LAN (RJ45, Realtek RTL8125) |
| Battery | Built-in button battery |
| Adapter | DC IN 19V / 3.42A |
| USB | 2 × USB-A 3.2 Gen2 (10Gbps, front), 2 × USB-A 2.0 (rear) |
| HDMI | 1 × HDMI 2.0 (4K@60Hz, rear) |
| DP | 1 × DisplayPort 1.4 (up to 8K@60Hz, rear) |
| Type-C | 1 × USB 3.2 Gen2 (10Gbps, PD 100W, DP 1.4 4K@60Hz, front) |
| Audio | 1 × 3.5mm jack (CTIA, front) |
| Power Port | 1 × DC IN 5525 |
| Reset | Reset / CMOS clear (front) |
| Keyboard | External keyboard supported |
| Dimensions | 128.8 × 127 × 47.8 mm |
| Weight | 528g (bare unit) |
| Package Size | 190 × 190 × 110 mm |

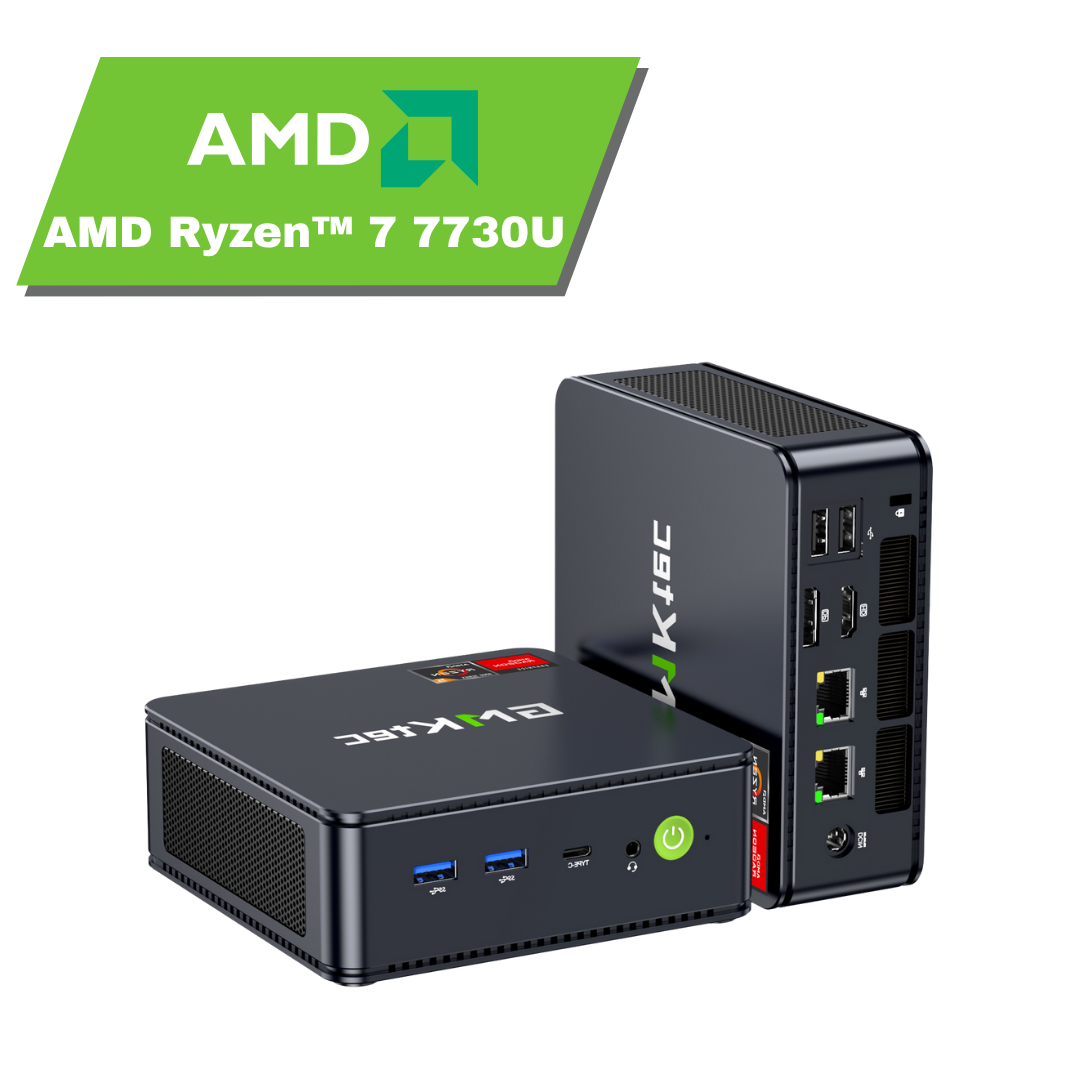

NucBox M5 Ultra
AMD Ryzen™ 7 7730U
8 cores 16 threads, TSMC’s 7 nm FinFET process, Max Frequency 4.5GHz
AMD Radeon™ Graphics
8 core 2000MHz frequency
SO-DIMM×2, DDR4 3200MT/s,
(Dual-channel), max support 64GB

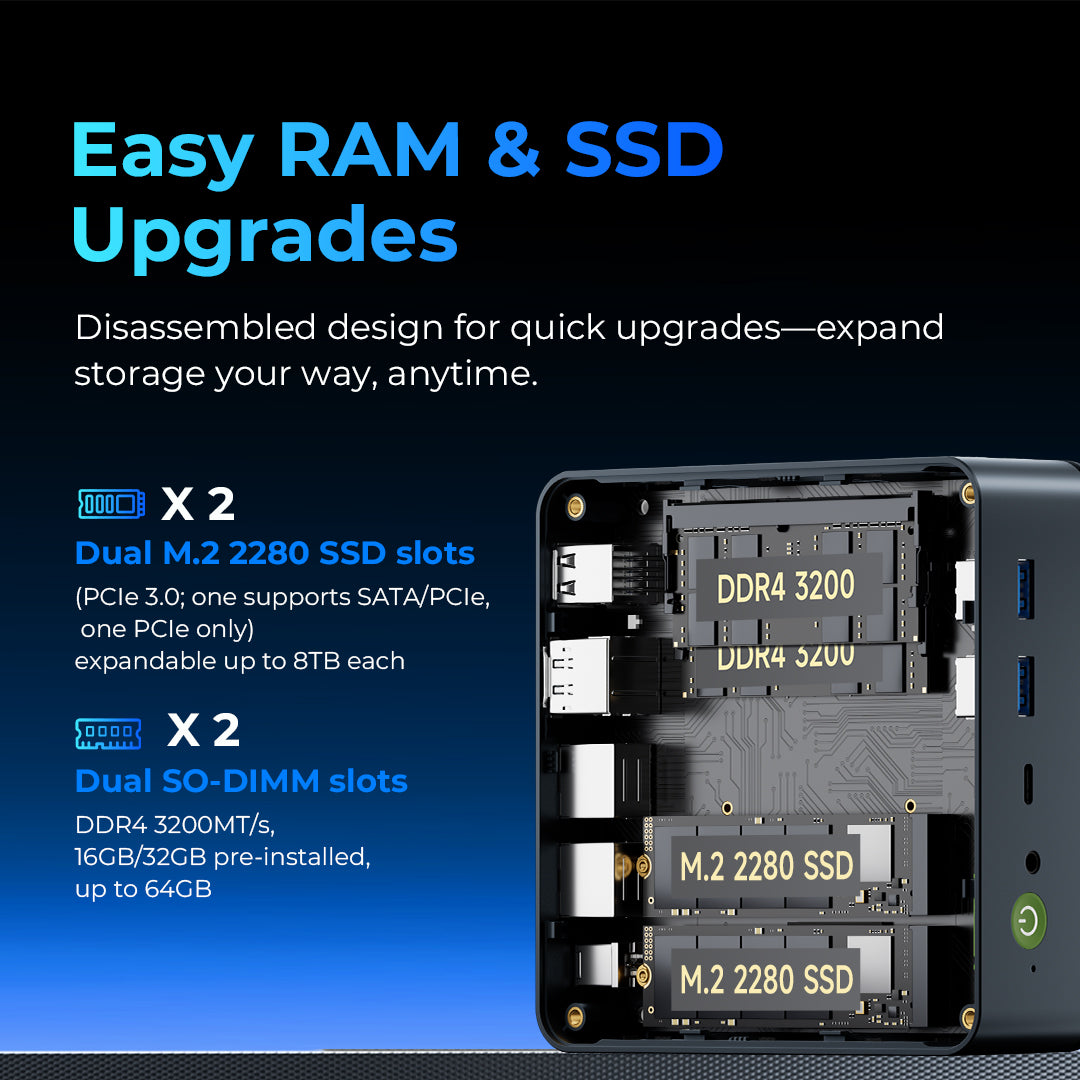

Dual M.2 SSD slots
Storage expansion: up to 16TB (1× SATA/PCIe 3.0 ×4, 1× PCIe 3.0 ×4)
Tripe Screens 8K Display
HDMI+DP+type-c outputs, supporting up to 8K resolution

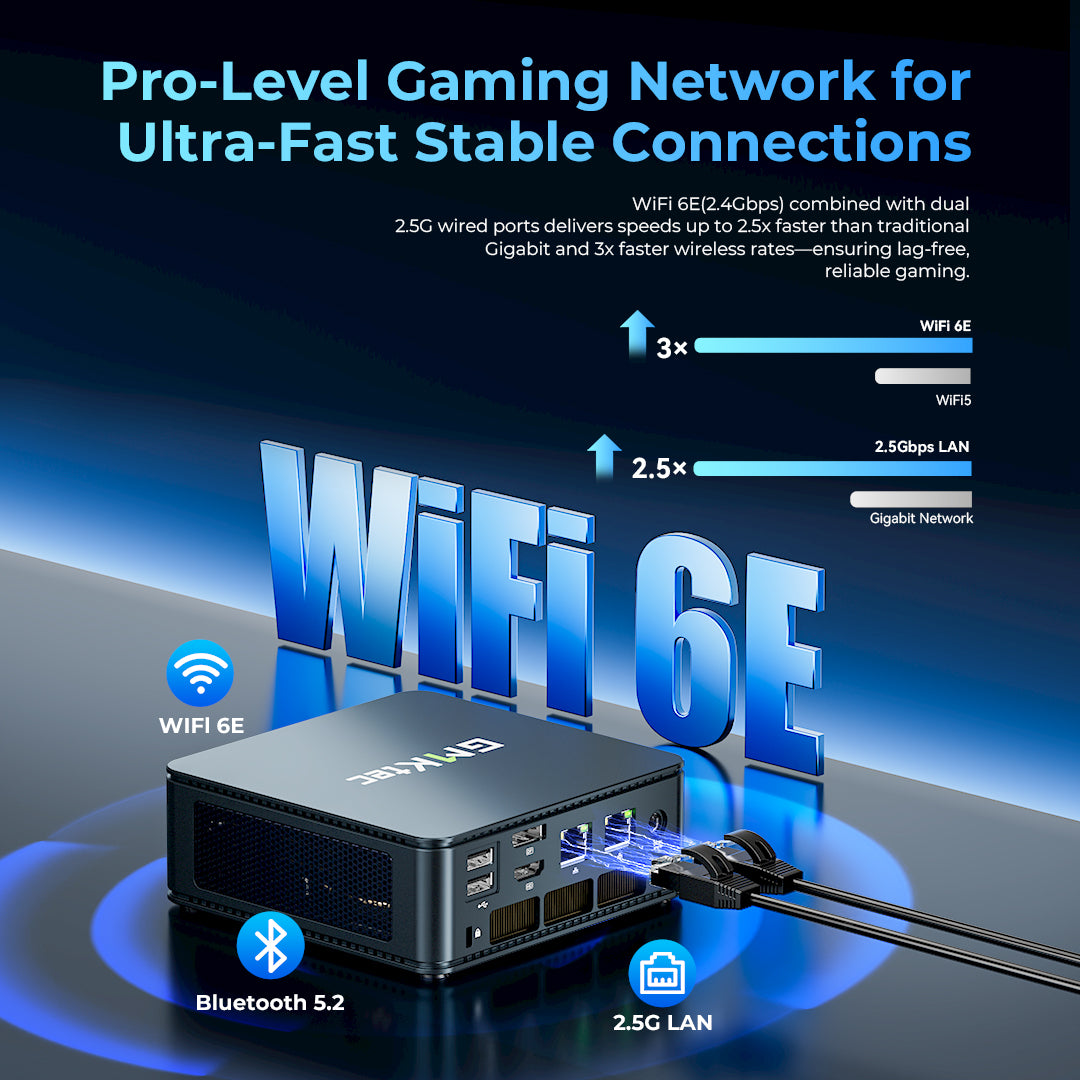

WiFi 6E + BT5.2
WiFi 6E (RZ616, 2.4Gbps),Bluetooth 5.2
2 LAN-Ports (2,5Gbps)
Dual-fan system design
AMD Ryzen™ 7 7730U
8 cores 16 threads, TSMC’s 7 nm FinFET process, Max Frequency 4.5GHz
AMD Radeon™ Graphics
8 core 2000MHz frequency
SO-DIMM×2, DDR4 3200MT/s,
(Dual-channel), max support 64GB
Dual M.2 SSD slots
Storage expansion: up to 16TB (1× SATA/PCIe 3.0 ×4, 1× PCIe 3.0 ×4)
Tripe Screens 8K Display
HDMI+DP+type-c outputs, supporting up to 8K resolution
WiFi 6E + BT5.2
WiFi 6E (RZ616, 2.4Gbps),Bluetooth 5.2
2 LAN-Ports (2,5Gbps)
Dual-fan system design
Power Meets Efficiency
AMD Ryzen™ 7 7730U Processor
MAX4.5G | Base Frequency:2.0GHz
8 Cores (High-performance Zen architecture）
16 Threads | TSMC 7nm FinFET Process

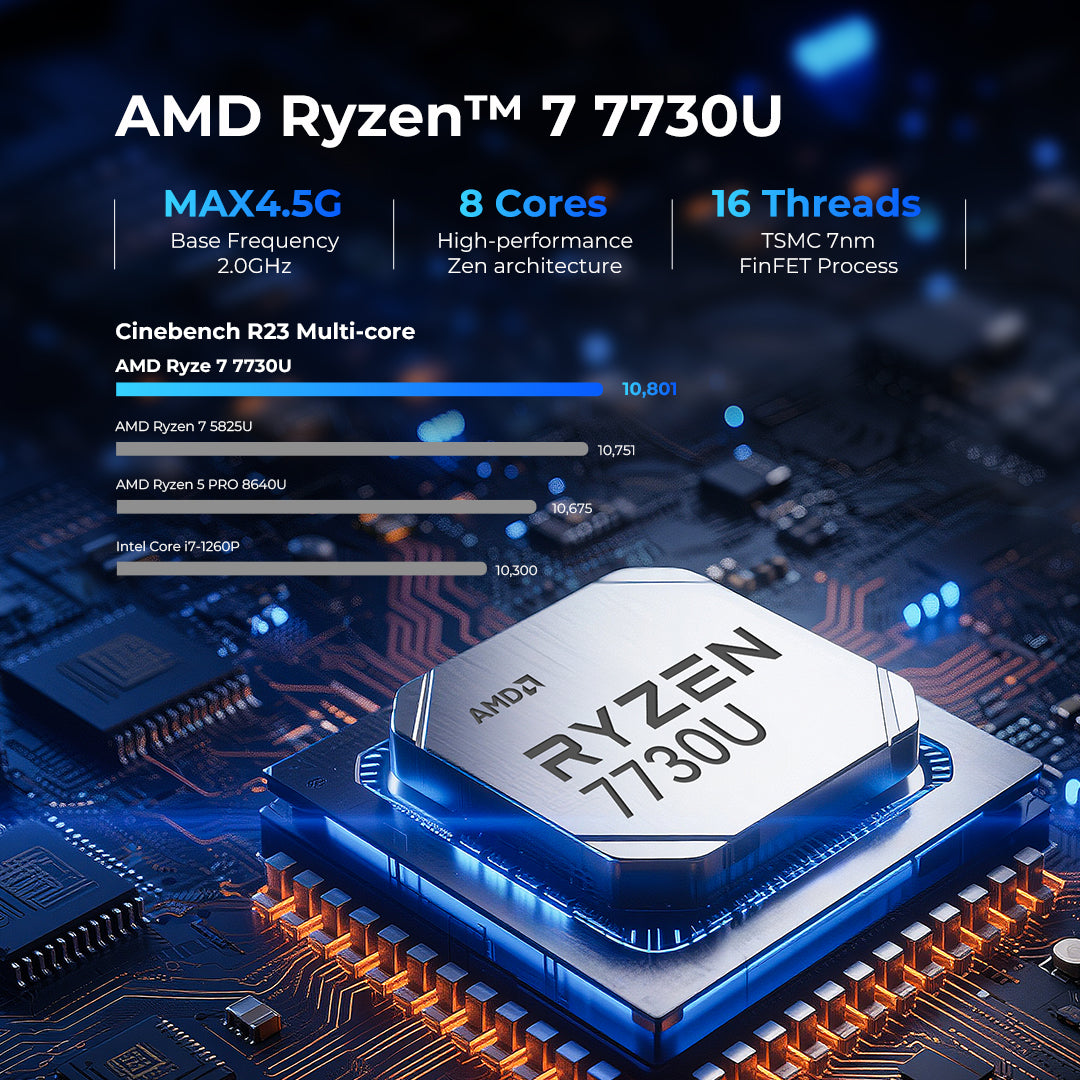

Cinebench R23 Multi-Core Score（For reference only）
AMD Ryzen™ 7 7730U
10801
AMD Ryzen 7 5825U
10751
AMD Ryzen 5 PRO 8640U
10675
Intel Core i7-1260P
10300
Experience Ultra-Clear 8K with Radeon™ GPU
SSD
DDR4

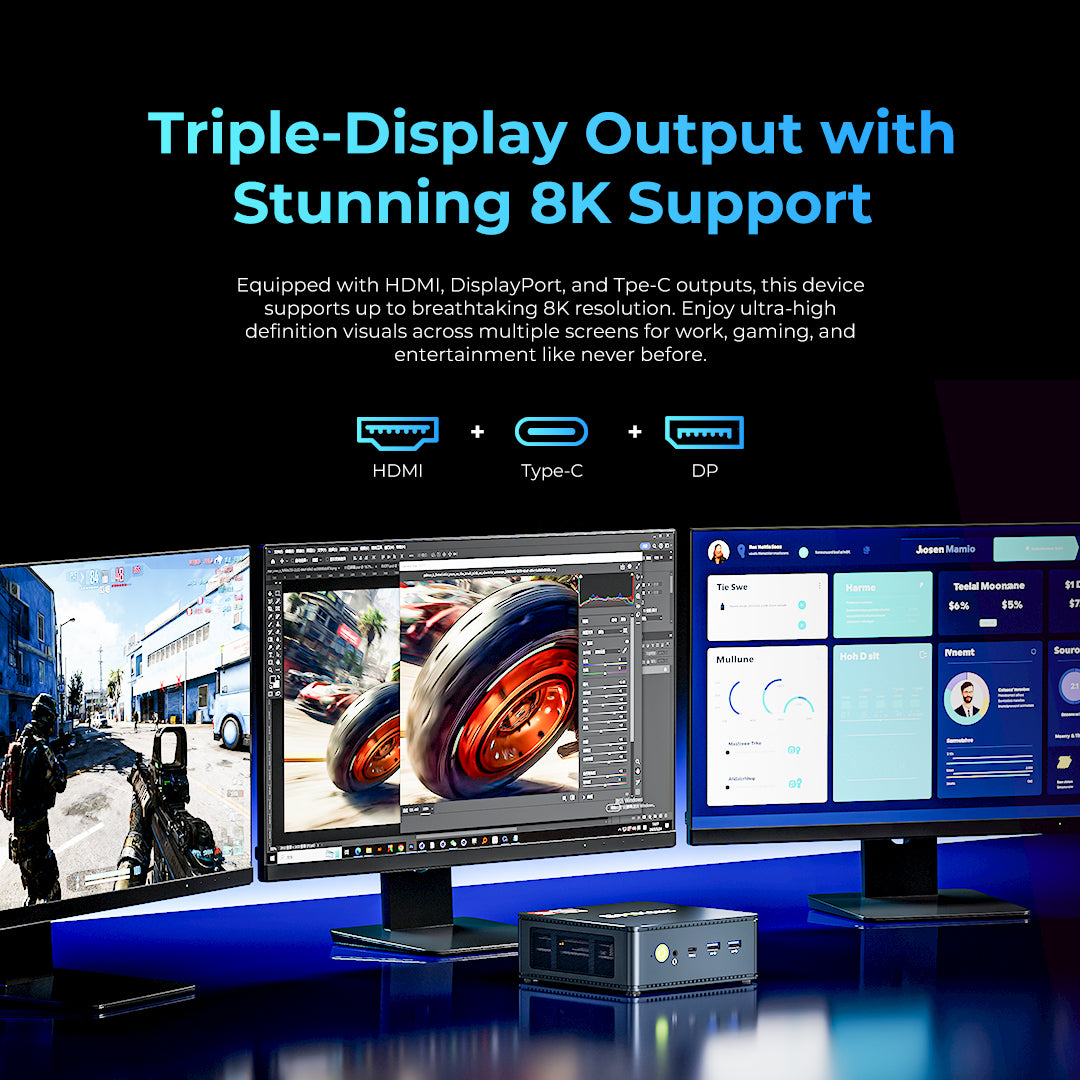

Supports 3-screen Up to 8K display
1 × HDMI2.0 (4K@60Hz)
1 × type-C support
1 × Display Port 1.4 (4K@60Hz), maximum support up to 8K 60Hz

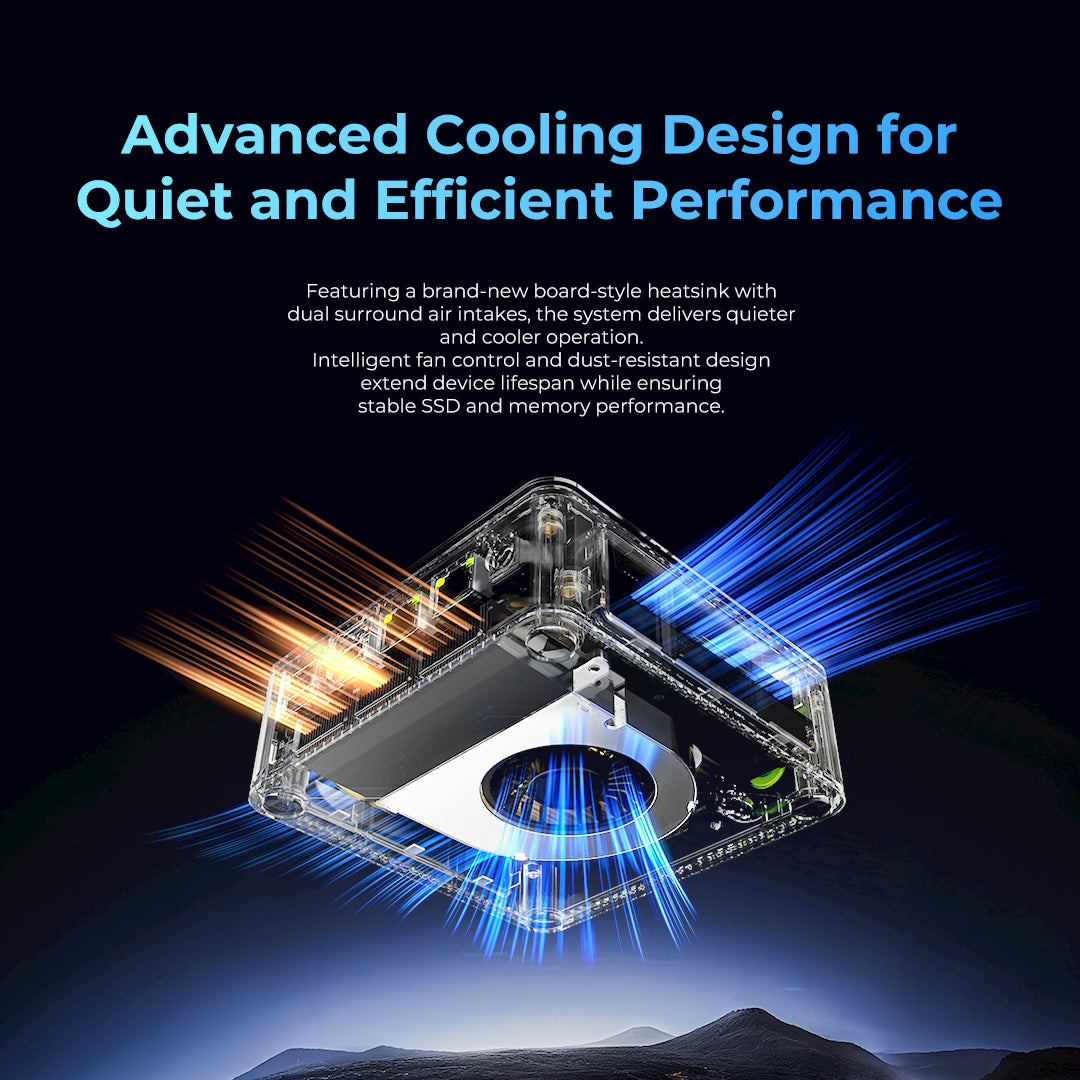

Advanced Cooling Design for Quiet and Efficient Performance
Featuring a brand-new board-style heatsink with dual surround air intakes, the system delivers quieter and cooler operation. Intelligent fan control and dust-resistant design extend device lifespan while ensuring stable SSD and memory performance.

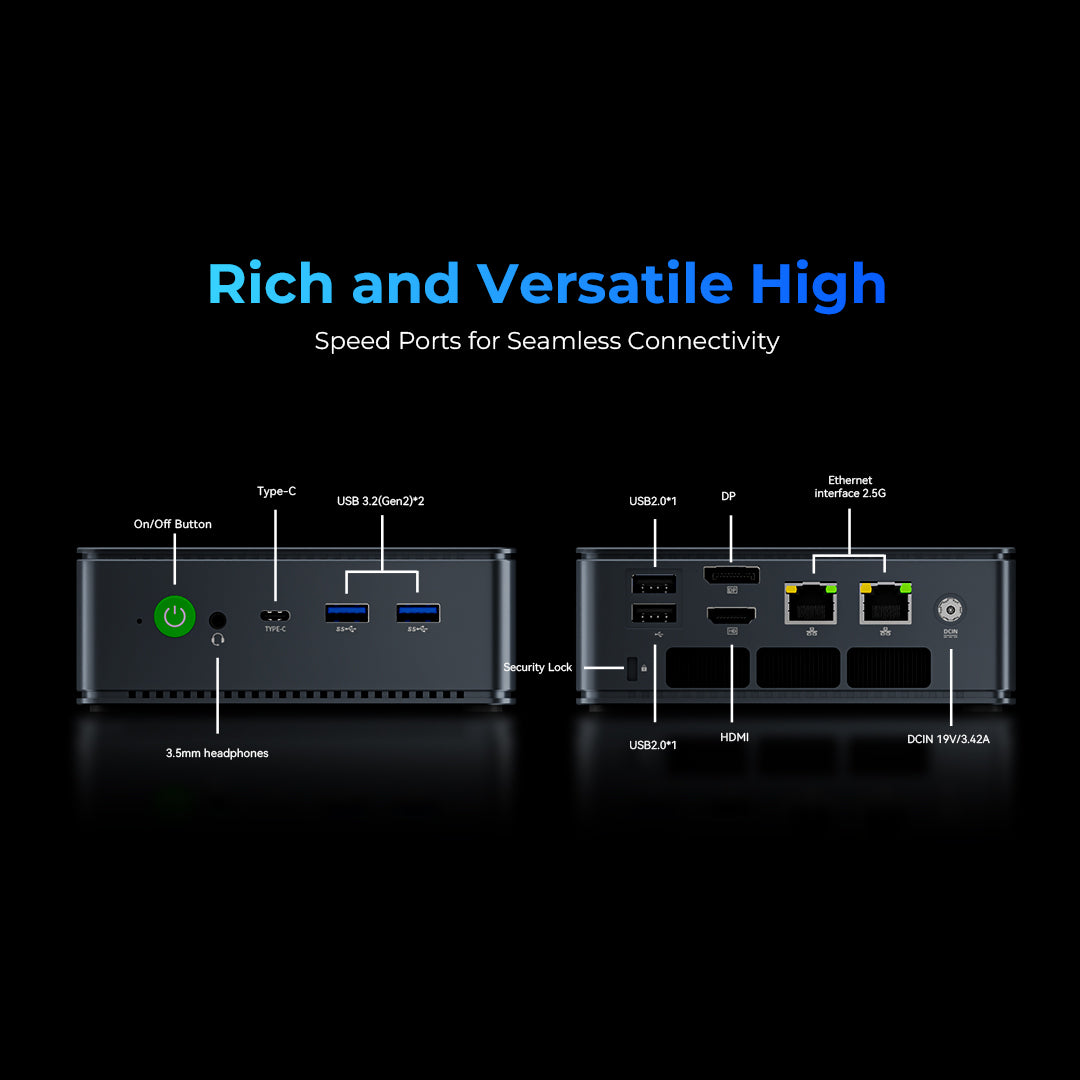

USB 3.2 × 2 + USB 2.0 × 2 + HDMI 2.0 (4K@60Hz) + DisplayPort × 1 (4K@60Hz, up to 8K@60Hz) +Type-C(USB 3.2 Gen2.PD,DP) + 3.5mm Audio Jack + Dual 2.5G LAN (RJ45)
