specifications

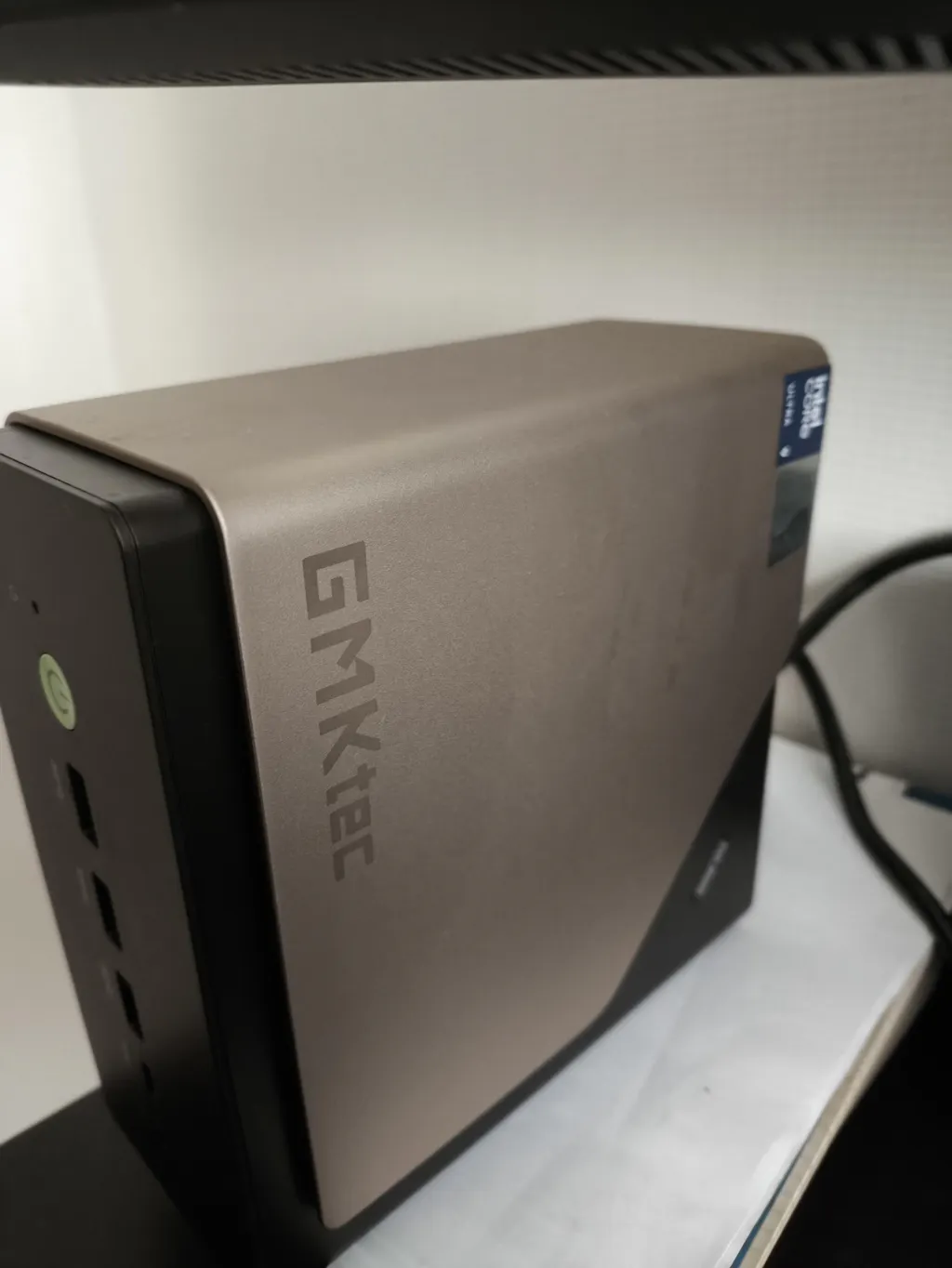

Name: GMKtec EVO-T1 Intel Core Ultra 9 285H AI Mini PC
Brand: GMKtec
SKU: EVO-T1-4-00U
Price: 999.99 EUR
Availability: InStock

Parameter	Details
Model name	EVO-T1
CPU	Intel® Core™ Ultra Processors (Series 2) • 16 cores / 16 threads (6P+8E+2LP hybrid architecture) • TSMC N3B process • Max. 5.4 GHz • 24 MB L3-Cache • TDP: 45-80W (80W max design) • Total peak performance TOPS (Int8): 99 TOPS
CPU-Modell	Ultra 9 285H
CPU socket/case	FCBGA2049 50 mm x 25 mm
GPU	Intel® Arc™ 140T GPU • Max. dynamic frequency: 2.35 GHz • GPU Peak Performance TOPS (Int8): 77 TOPS
NPU	Intel® AI Boost • NPU peak performance TOPS (Int8): 13 TOPS
Memory (RAM)	2×DDR5 SO-DIMM Dual-Channel • 32GB×2 = 64GB 5600 MT/s • Supports up to DDR5 6400 MT/s
Primary memory (ROM)	3×M.2 2280 PCIe4.0×4 SSD • 1TB/2TB
Internal memory expansion	3×M.2 2280 PCIe4.0×4 slots • Maximum total capacity: 12TB (4TB×3)
Video output	Via HDMI 2.1×1 + DP1.4×1 + USB4×1 + Type-C×1 • Supports simultaneous quad display output • HDMI 2.1: 8K@60Hz or 4K@144Hz (supports CEC) • DP 1.4 (supports DP++)
Network	WiFi 6 (AX200) • Max. speed: 2.4Gbps • Bluetooth 5.2
power supply	• Integrated button cell • Charger: DC IN 19V 6.32A 120W or 19V/7.89A 150W max.
Front connections	• 1×3.5 mm combo audio jack • 1×USB3.2 Gen2 Type-C (PD/DP/Data) • 3×USB3.2 Gen2 Type-A • Power button with white LED • Clear CMOS button
Rear connections	• 1×5.5×2.5 mm charging port • 1×3.5 mm combo audio jack • 1×HDMI 2.1 • 1×DP 1.4 • 1×Oculink (PCIe Gen4×4, no hot plug) • 2×USB2.0 Type-A (stacked) • 2×2.5G LAN (Realtek 8125BG) • System fan/LED control button (13 lighting effects)
operating system	Windows 11 Pro
Dimensions	• 15415173.6 mm • 910g (device weight without accessories)
Special features	• AI desktop data center with 182W+ power score • Three power modes: Quiet (35W), Balanced (54W), Performance (80W) • Dual cooling system with VC cooling and intelligent fan control • WiFi 6 + Dual 2.5G LAN for fast network • Quad display support (simultaneous 4K output) • Oculink interface for external GPU expansion • Integrated 32B Deepseek local AI model

Special Offer Just for You!

You’ve added a product to your cart - now unlock an exclusive deal! Grab this offer before you check out

$26.89

Add to cart

No thanks

Add to cart

Remove all

FAQ

📢 OFFICIAL ANNOUNCEMENT: ORDER AND SHIPPING UPDATES

1️⃣ IN STOCK | FAST SHIPPING
All orders will be shipped immediately after receipt of payment.

2️⃣ ACTIVATION OF THE EARLY BIRD DISCOUNT
– Subscribers who registered for the EVO-T1 between June 16 and July 16 will receive an exclusive €80 early bird discount code via email.
Please also check your spam/promotions folder.

– The EVO-T1 survey gift cards will also be sent out gradually.
A notice: Only one gift card can be redeemed per order. Multiple redemptions will invalidate the order.

Not received? 📩 Contact us: service@gmktec.com

3️⃣ DHL / FEDEX INTERNATIONAL SHIPPING
Orders with high value goods are shipped via DHL or FedEx.
The buyer is responsible for customs clearance and the payment of all applicable import duties and taxes.

As the second generation of the Intel Core Ultra 9 285H flagship processor, it is based on the advanced Arrow Lake architecture, uses a chiplet design, and is manufactured using TSMC's 3nm N3B process. It features 16 cores and 16 threads, including 6 performance cores, 8 efficiency cores, and 2 low-power efficiency cores. With a 24MB L3 cache, a maximum turbo clock speed of 5.4 GHz and a base frequency of 2.9 GHz.

The Intel Core Ultra 9 285H integrates Arc 140T graphics with 8 Xe cores and a maximum dynamic frequency of 2.35 GHz. It delivers up to 77 TOPS (INT8) of peak GPU performance, enabling smooth operation of large 32B language models locally.

Powered by the Intel AI Boost NPU (13 TOPS), combined with the CPU and Arc 140T GPU for a total of 99 TOPS (INT8). Pre-installed with DeepSeek-R1-32B: Running at approximately 15 tokens/s. Supports AI acceleration for matrix multiplication, convolution, and general vector operations.
