Processor (CPU)	11th Generation Intel® Core™ i7, 4 Cores / 8 Threads, 10nm, up to 4.8 GHz, 12 MB L3 caches Modes: Quiet 28W, Balanced 35W, Power 40W Model: i7-1185G7 Socket: FCBGA1449, 45.5 × 25mm
Graphics (GPU)	Intel® Iris® Xe Graphics, max. dynamic frequency 1.35 GHz, 96 EUs
RAM	2× SO-DIMM DDR4 3200 MT/s Dimensions: 16 GB / 32 GB Maximum: 64 GB (32 GB × 2)
Memory (ROM)	2 × M.2 SSD Delivery: 2280 NVMe (PCIe 3.0) 512 GB Support: PCIe 4.0
Memory expansion	1 × M.2 2280 PCIe 4.0 ×4 up to 8 TB (no SATA) 1 × M.2 2242 SATA up to 2 TB (no PCIe)
Advertisement	No display integrated
Video outputs	2 × HDMI 2.0 (4K@60Hz) 1 × Type-C (DP/DATA) 4K@60Hz / 5 Gbps
Audio	1 × 3.5 mm jack (CTIA)
Network	WiFi 6 (Realtek 8852BE, 802.11a/b/g/n/ac/ax, bis 1201 Mbps) Bluetooth 5.2 LAN: 1 × RJ45 (2,5 G / 1 G / 100M / 10M)
power supply	DC IN (5.5/2.5 mm) 20V / 5A 100W Integrierte Knopfzelle

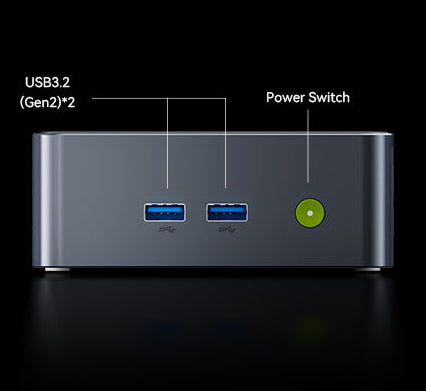

USB ports	2 × USB-A 3.2 Gen2 (10 Gbps) 1 × USB-A 3.2 Gen1 (5 Gbps) 1 × USB-A 2.0 (480 Mbps)
Dimensions	114 × 106 × 42,5 mm
Weight	361 g (without accessories)

-

Feature In Media

NucBox M2 For S

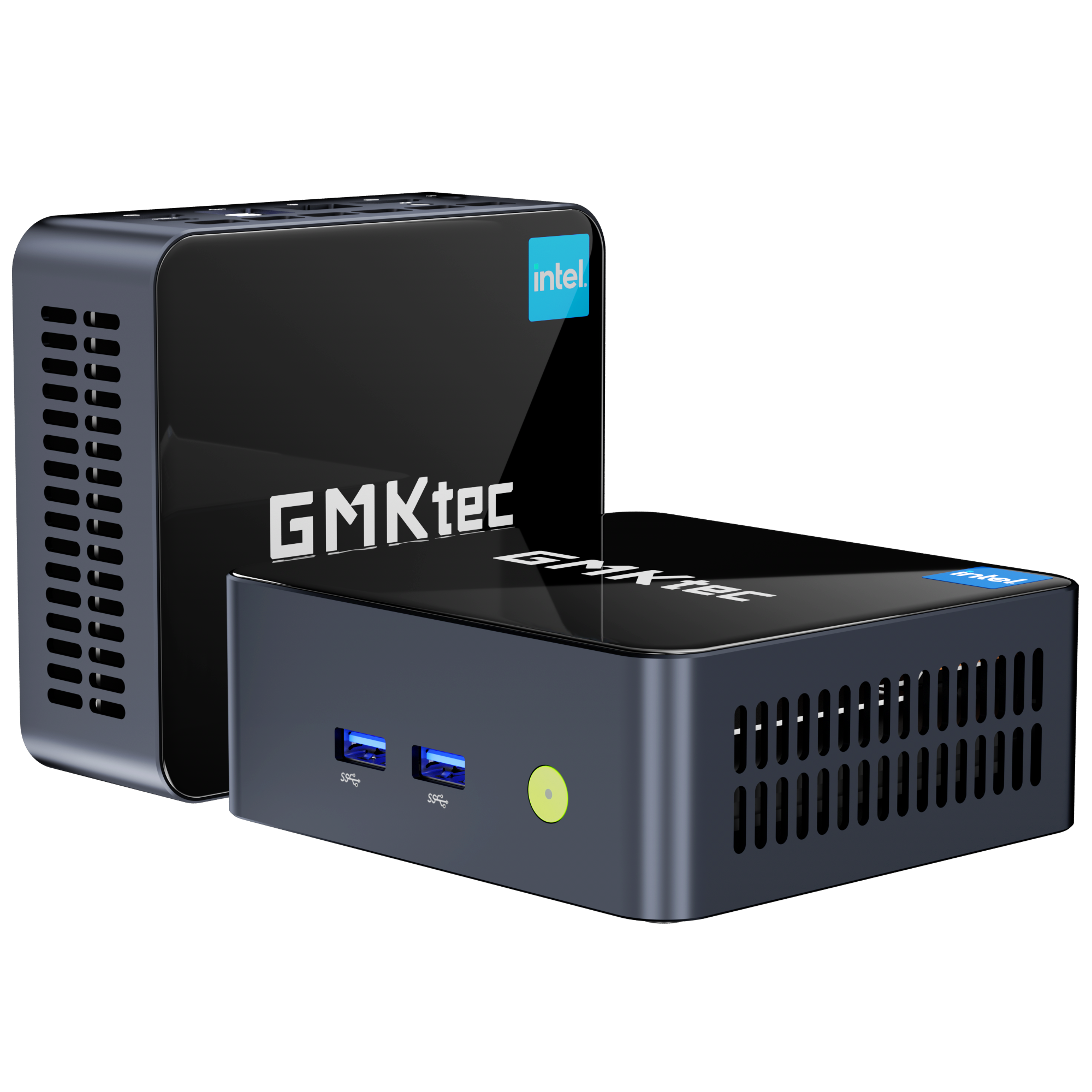

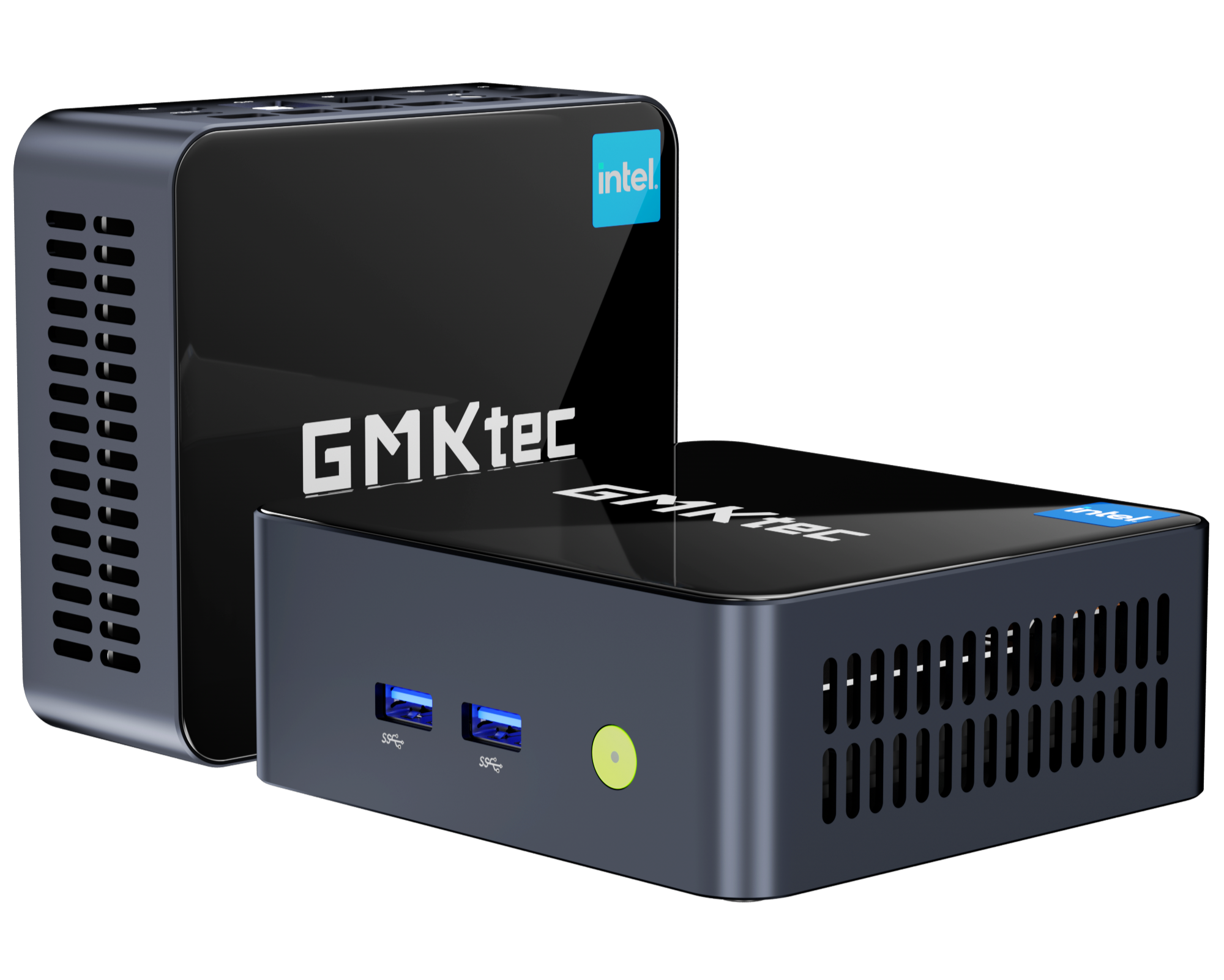

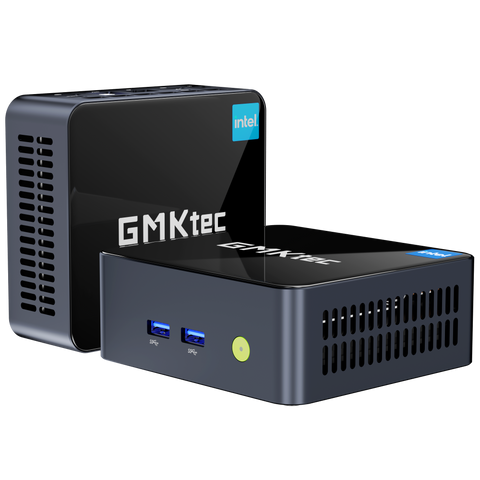

Name: GMKtec NucBox M2 Pro S Intel® i7-1185G7
Brand: GMKtec
SKU: M2 PRO S-2-00U
Price: 249.99 EUR
Availability: InStock

Intel Core i7-1185G7

4 cores and 8 threads, maximum turbo frequency 4.8 G

Intel® Iris® Xe Graphics

Ultra-Fast Dual M.2 Storage

Maximum up to 10TB

Dual SO-DIMM slots, DDR4 3200MT/s

Expandable up to 64GB

Supports 4K triple screen resolution

WIFi 6+BT5.2

WiFi 6 (up to 1201 Mbps)

Copper twin turbine cooling

Windows 11 Pro preinstalled

Compatible with Win 11 Pro, Linux,Ubuntu

Intel Core i7-1185G7

4 cores and 8 threads, maximum turbo frequency 4.8 G

Intel® Iris® Xe Graphics

Ultra-Fast Dual M.2 Storage

Maximum up to 10TB

Dual SO-DIMM slots, DDR4 3200MT/s

Expandable up to 64GB

Supports 4K triple screen resolution

WIFi 6+BT5.2

WiFi 6 (up to 1201 Mbps)

Copper twin turbine cooling

Windows 11 Pro preinstalled

Compatible with Win 11 Pro, Linux,Ubuntu

Power Meets Efficiency

Intel core i7-1185G7

4.8GHz Max Turbo Frequency

4 Cores, 8 Threads

12MB L3 cache

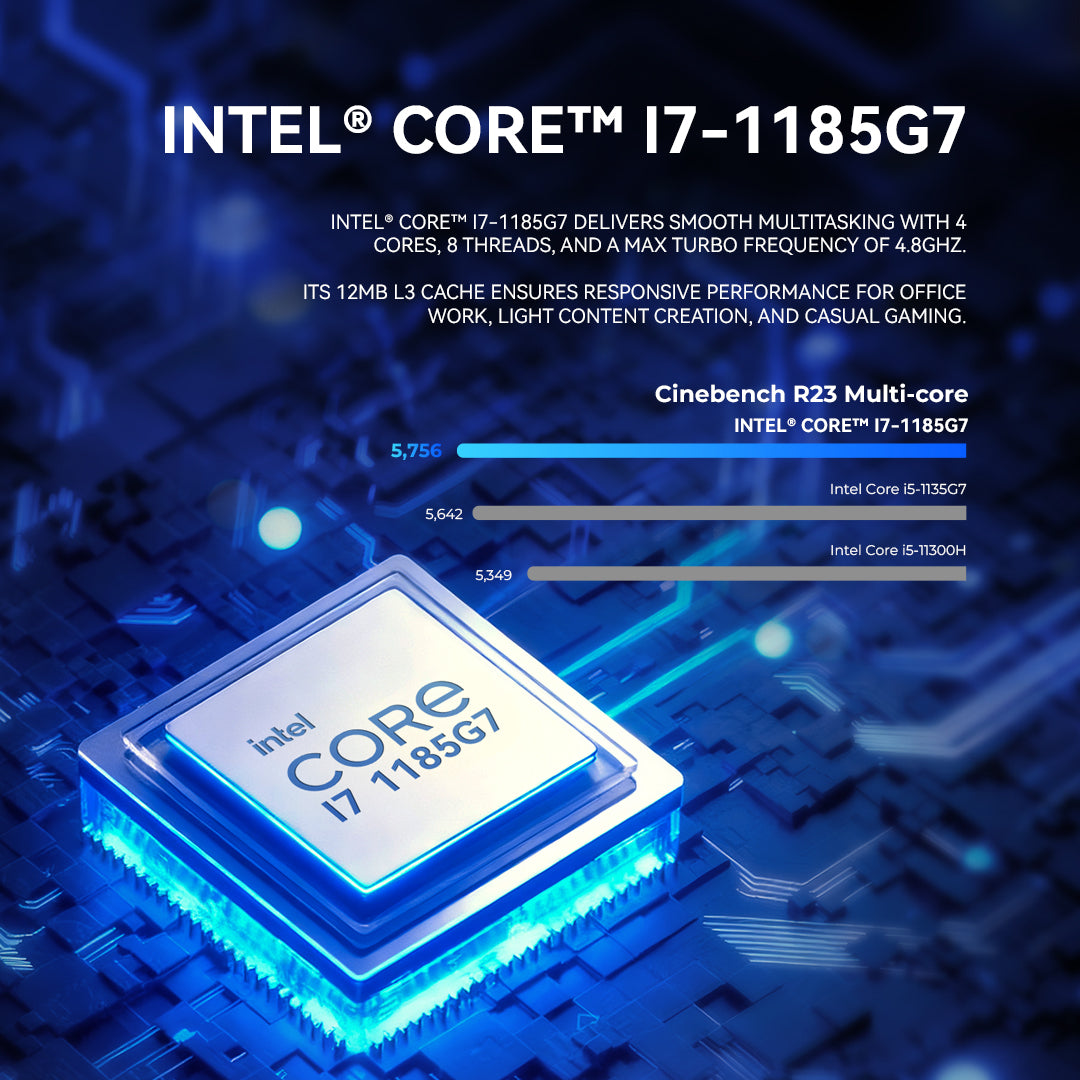

Cinebench R23 Multi-Core Score

Intel Core i7-1185G7

5756

Intel Core i5-1135G7

5642

Intel Core i5-11300H

5349

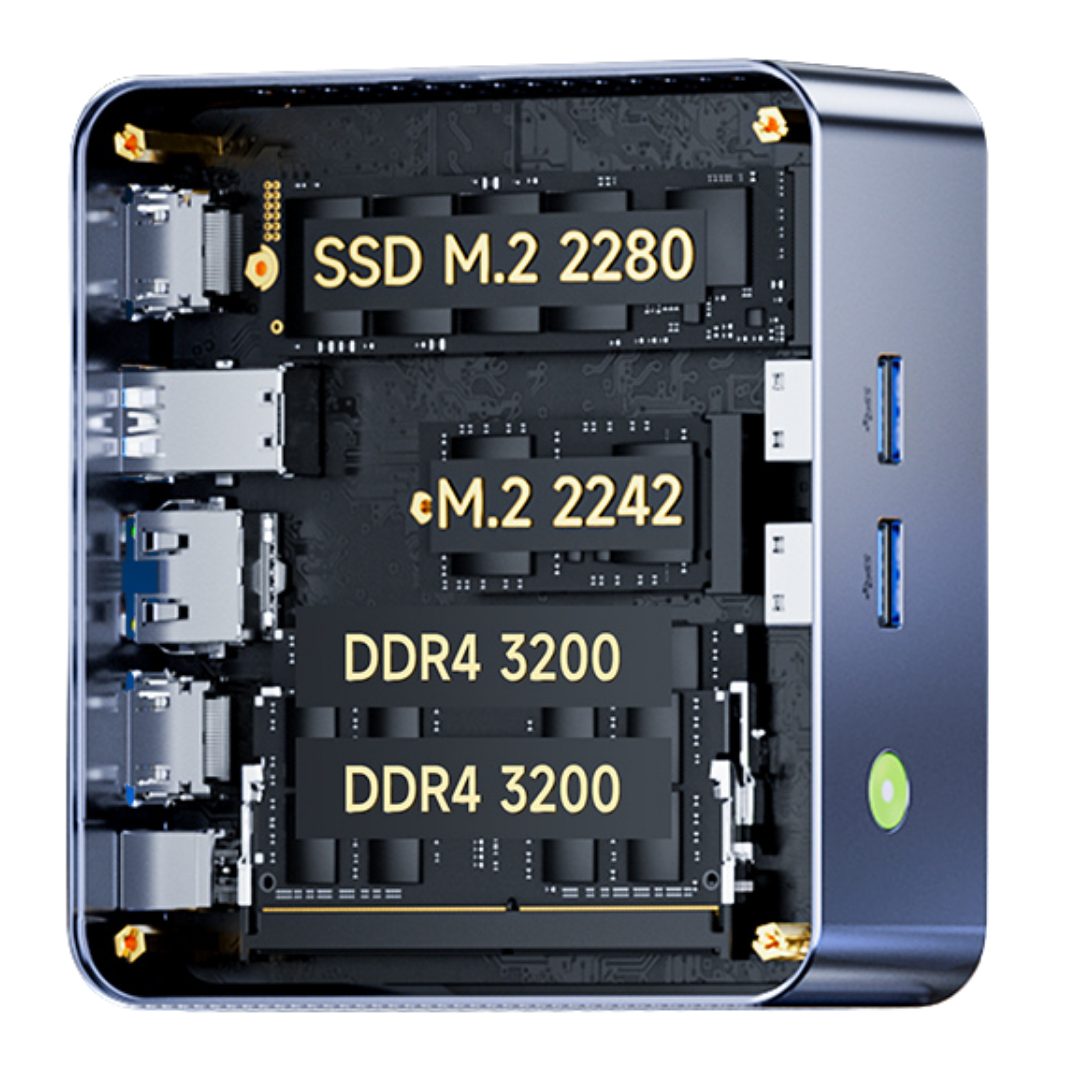

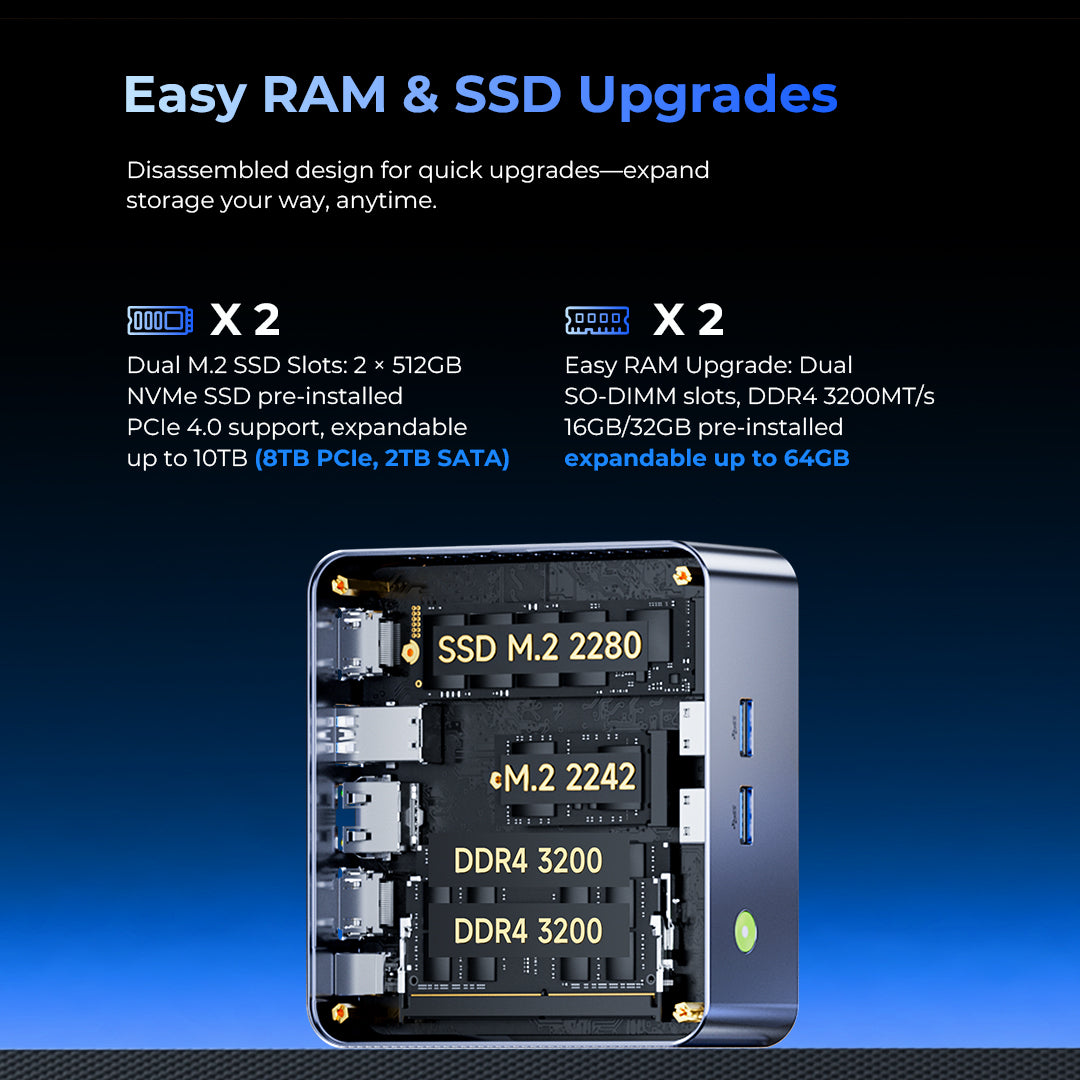

Dual M.2 SSD Slots

2 × 512GB NVMe SSD pre-installed
PCIe 4.0 support
Expandable up to 10TB (8TB PCIe + 2TB SATA)

DDR4
Easy RAM/SSD Upgrade
Dual SO-DIMM slots
DDR4 3200 MT/s
16GB / 32GB pre-installed
Expandable up to 64GB

With up to 64GB memory and 10TB storage, the M2 Pro S handles Excel, Photoshop, and other apps with ease—while giving you ample room to expand, so you can work and play without limits.

Powered by the Intel Core i7-1185G7 with Iris Xe Graphics, this mini PC runs eSports titles smoothly and handles AAA games on lower settings.

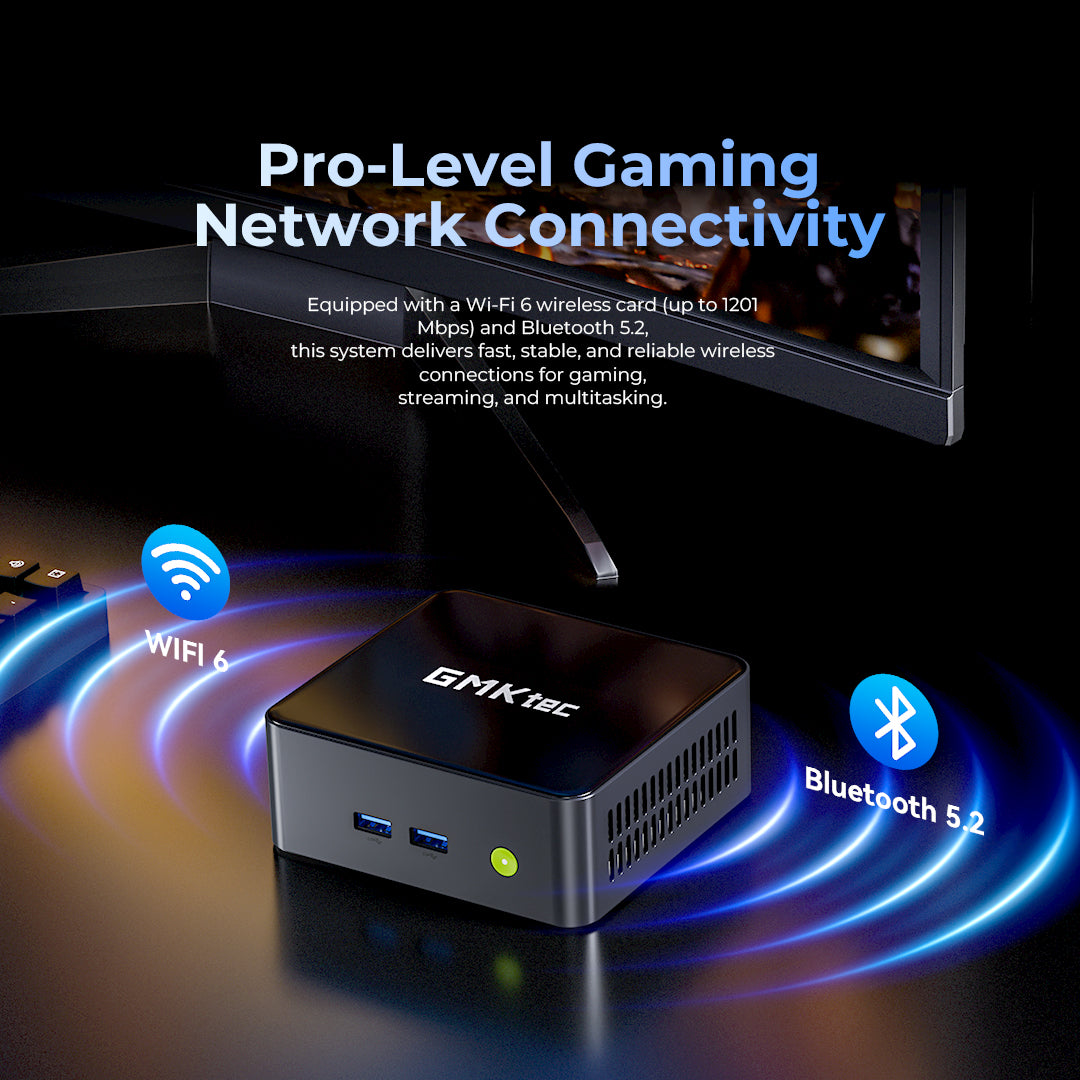

Equipped with a Wi-Fi 6 wireless card (up to 1201 Mbps) and Bluetooth 5.2, this system delivers fast, stable, and reliable wireless connections for gaming, streaming, and multitasking.

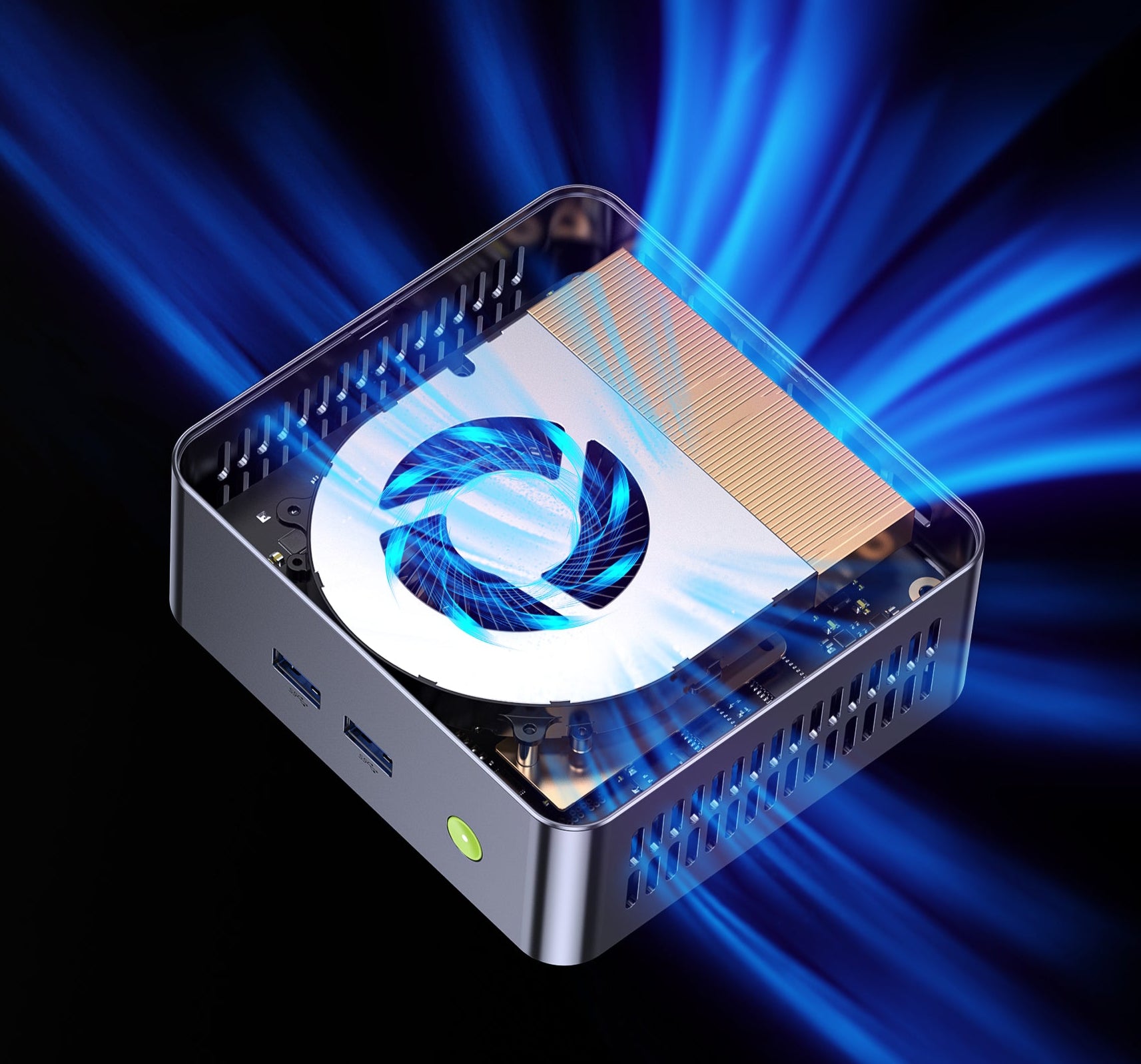

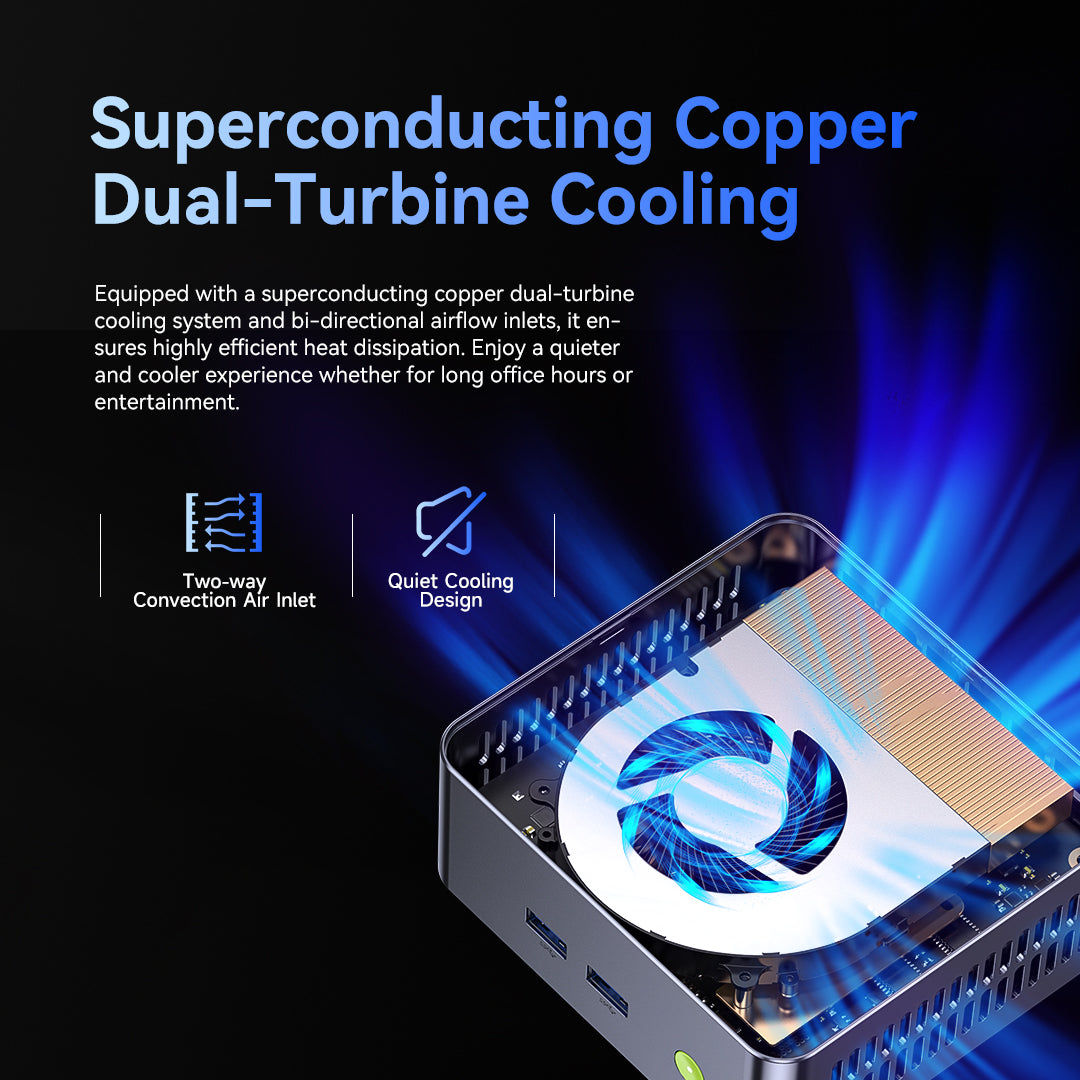

Equipped with a superconducting copper dual-turbine cooling system and bi-directional airflow inlets, it ensures highly efficient heat dissipation. Enjoy a quieter and cooler experience whether for long office hours or entertainment.

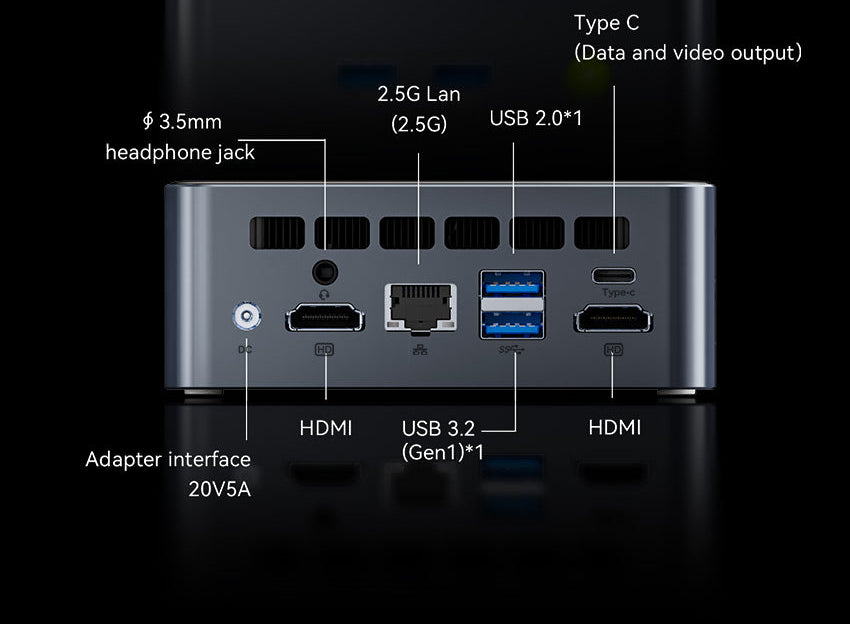

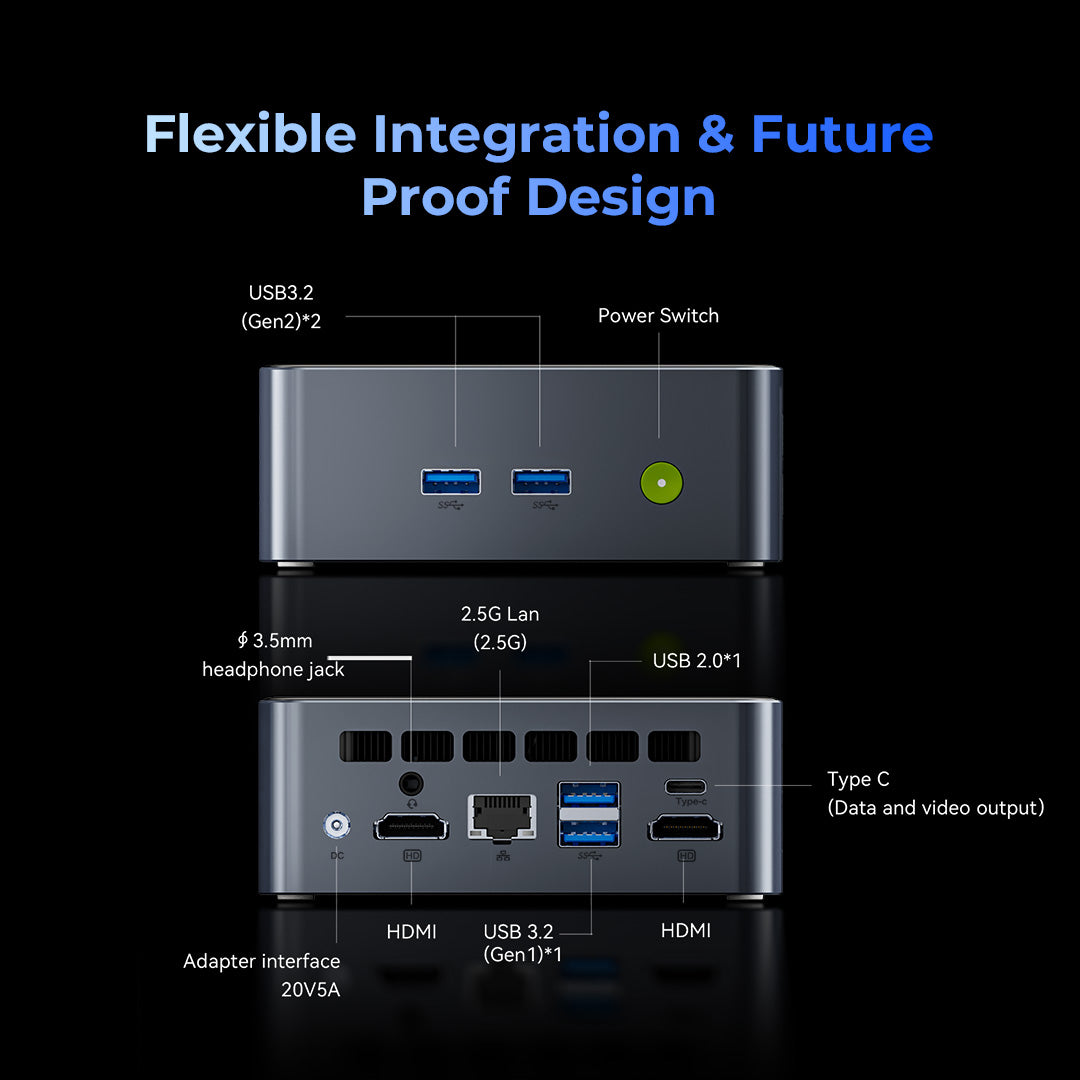

M2 Pro S Featuring 2 × USB 3.2 Gen2 (10Gbps), 1 × USB 3.2 Gen1, 1 × HDMI 2.0 (4K@60Hz), 1 × Type-C, 1 × 2.5G LAN, and 1 × 3.5mm audio jack, this device provides all the connectivity you need for work, gaming, and entertainment.
