Name: GMKtec NucBox M6 Ultra AMD Ryzen™ 5 7640HS Mini PC
Brand: GMKtec
SKU: M6 ULTRA-0-00U
Price: 259.99 EUR
Availability: InStock

description
specification

description

specification

Item	Specification
CPU	AMD Ryzen™ 5 7640HS Processor, 6 cores 12 threads, TSMC 4nm process, Max Frequency 5.0GHz, 6MB L2 Cache / 16MB L3 Cache, TDP 35W–50W
GPU	AMD Radeon™ 760M Graphics (8 cores, 2600MHz), RDNA 3 architecture
RAM	SO-DIMM ×2, DDR5 4800 MT/s, (Dual-channel), max support 128GB
Storage	M.2 SSD ×2, NVMe (PCIe 4.0), expandable up to 8TB (Dual SSD slots)
Graphics Output	HDMI 2.0 (4K@60Hz) + DisplayPort (4K@60Hz) + USB4 (supports up to 8K)
Network	WiFi 6E (RZ616, 2.4Gbps), Bluetooth 5.2, Dual LAN (RJ45) ×2 (2.5G)
Power Supply	DC IN (5.5/2.5mm), 19V / 6.32A 120W
Interfaces	2× USB 3.2 Gen2 (10Gbps, front) 1× USB 3.2 Gen2 (10Gbps, rear) + 1× USB 2.0 (480Mbps, rear) 1× USB 4.0 (40Gbps, supports DP/PD) 1× HDMI 2.0: 4K@60Hz 1× DisplayPort: 4K@60Hz (supports 8K) Audio Jack: 3.5mm, CTIA standard DC Power Input Dual 2.5G Ethernet Ports
Operating System	Supports Windows 11 Pro, 14 languages supported (default English)
Weight	Bare unit: 528g, Full packaging: 1386g
Included Accessories	Power adapter, HDMI cable, VESA mount, manual, warranty card
	128.8mm × 127mm × 47.8mm

-

Feature In Media

GMKtec M6 Ultra

AMD Ryzen™ 5 7640HS

6 cores 12 threads, TSMC 4nm process, Max Frequency 5.0GHz

AMD Radeon™ 760M Graphics

(8 cores, 2600MHz), RDNA 3 architecture

SO-DIMM×2, DDR5 4800 MT/s,

(Dual-channel), max support 128GB

M.2 SSD×2, NVMe(PCIe4.0)

Expandable up to 8TB (Dual SSD slots)

Tripe Screens 8K Display

HDM1 2.0 + DP 1.4 +US8 4.0

WiFi 6E + BT5.2 + Dual LAN

WiFi 6E (RZ616, 2.4Gbps),Bluetooth 5.2,Dual LAN(RJ45)×2 (2.5G)

USB 4.0

(40Gbps, supports DP/PD)

3 modes switch

TDP 35W-54W

AMD Ryzen™ 5 7640HS

6 cores 12 threads, TSMC 4nm process, Max Frequency 5.0GHz

AMD Radeon™ 760M Graphics

(8 cores, 2600MHz), RDNA 3 architecture

SO-DIMM×2, DDR5 4800 MT/s,

(Dual-channel), max support 128GB

M.2 SSD×2, NVMe(PCIe4.0)

Expandable up to 8TB (Dual SSD slots)

Tripe Screens 8K Display

HDM1 2.0 + DP 1.4 +US8 4.0

WiFi 6E + BT5.2 + Dual LAN

WiFi 6E (RZ616, 2.4Gbps),Bluetooth 5.2,Dual LAN(RJ45)×2 (2.5G)

USB 4.0

(40Gbps, supports DP/PD)

3 modes switch

TDP 35W-54W

Power Meets Efficiency

AMD Ryzen™ 5 7640HS Processor

4.3 GHZ,Max Boost | Clock: 5.0GHz

6 Cores(High-performance
Zen architecture)

12 Threads,Process Technology: TSMC 4nm FinFE] Cache: 6MB L2 +16MB L3

Cinebench R23 Multi-Core Score

AMD Ryzen™ 5 7640HS

Text

13029

Intel Core i5-1240P

Text

11268

Text

AMD Ryzen™ 7 7730U

Text

10291

Text

Built on the advanced AMD RDNA 3 architecturethe Radeon™ 760M features 8 cores running at 2600MHz, deliveringperformance close to the NVlDlA GTX 1650 Ti With FSR 2.0+ technology support it boosts both visuals and frame ratesmaking it a strong contender to replace entry-level discrete graphics cardsfor everyday gaming and multimedia needs.

3 Modes Switch Seamlessly Between Work and Play

Silent, Balanced, and Performance modes tailored to fit all your needs anytime.

With a Master Lu score over 1.6 million, this device easily handles AAA titles and esports
games. Enjoy stable high frame rates and smooth gameplay for
animmersive gaming experience.

With 128GB memory and dual M.2 2280 PCle 4.0 slotsthe M6 Ultra runs Excel, Photoshopand other office apps effortlessly whileletting you easily expand storagework and play without limits.

Dual M.2 2280PCle Max.8TB | 4800MT/s Dual Channel SO-DIMM

UPGRADE OUIET COOLING FANCopper Cooling Fan &Multiple Exhaust vents

Turbo Cooling

Two-way Convection Air Vents

Silent Fan System

Dual LAN (RJ45) – network ports, compatible with Linux, Ubuntu, ESXi and VMware

DUAL 2.5G HIGH SPEED ETHERNET

Read/write speed

2.5Gbps LAN

Text

2.5× Times

1000MbpS LAN

Text

Supports 3-screen 4K display

2*HDMI(4K@60Hz)

1 × Type-C support DP/DATA

Powerful Front USB4.0 Port With Full Functionality

The front USB4.0 port supports ultra-fast 40Gbps data transfer,100W PD charging input, and DP1.4 video output.
Experience faster, more convenient, and versatile connectivi.
ty at your fingertips.

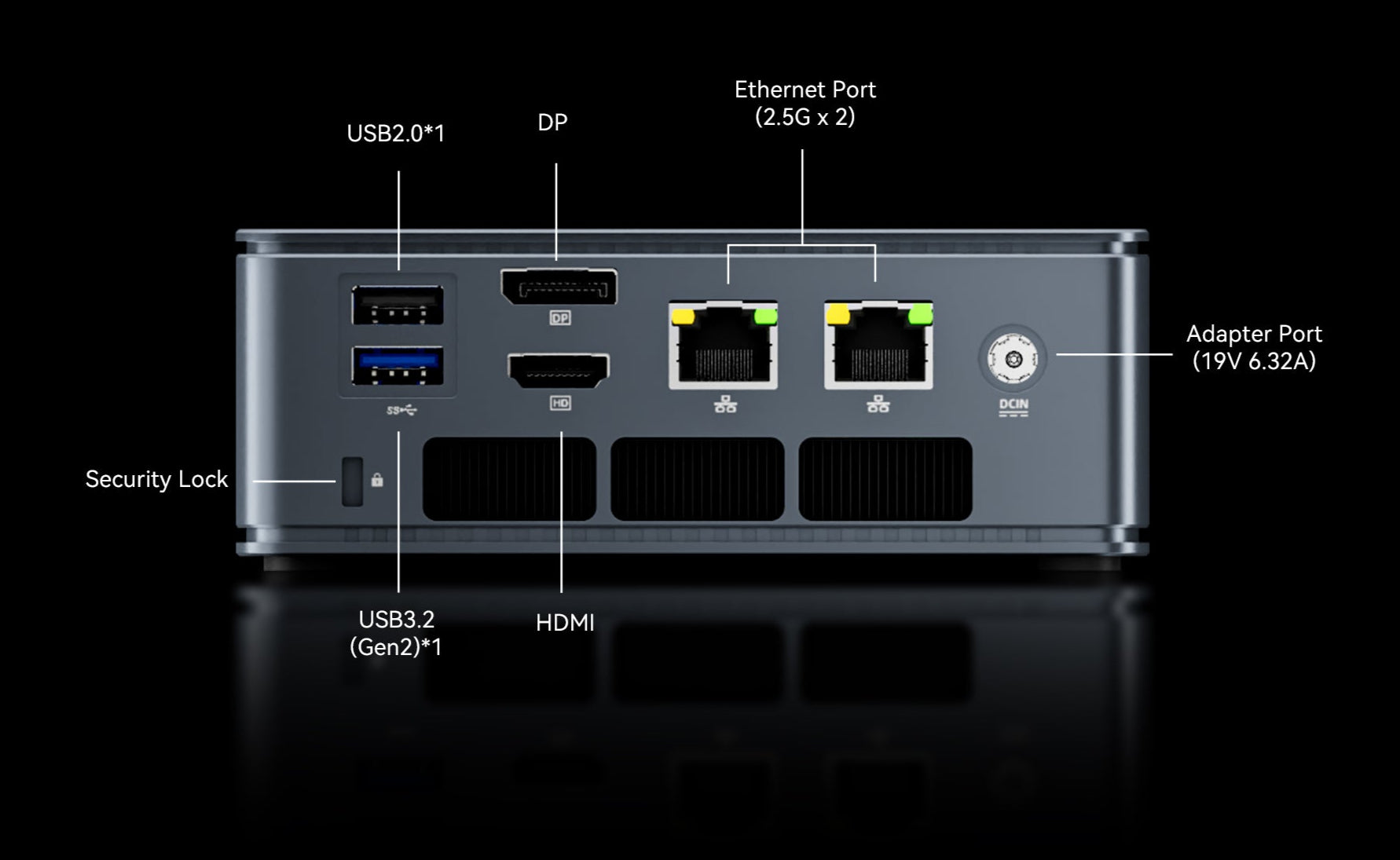

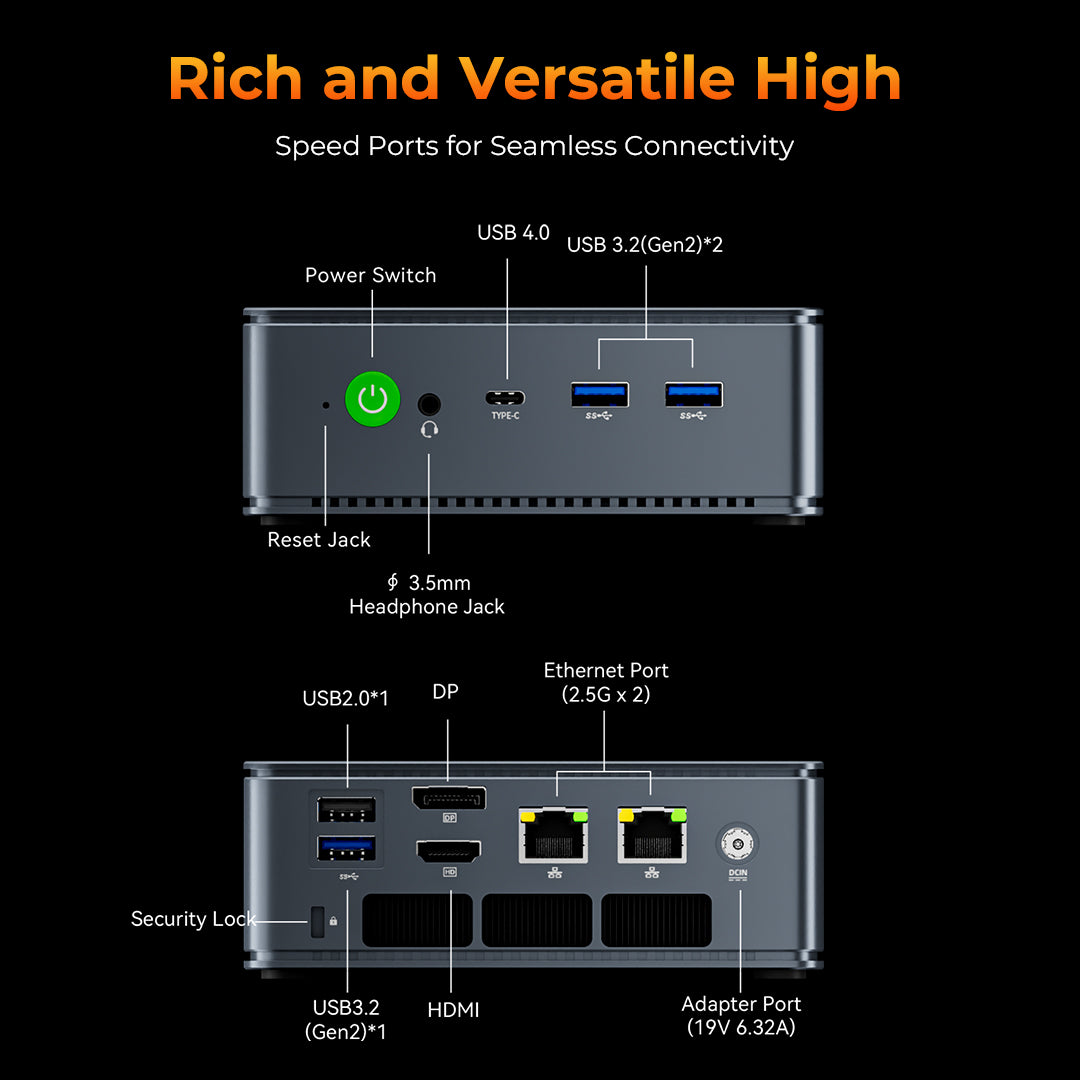

M6 Ultra is equipped with a versatile range of interfaces, including 2x USB 3.2 Gen2 (front) and 1x USB 3.2 Gen2 + 1x USB 2.0 (rear) for fast connectivity. It also features a USB4.0 port (40Gbps, DP/PD support), along with HDMI 2.0 and DisplayPort for up to 8K display output. Additional options include a 3.5mm CTIA audio jack, DC power input, and dual 2.5G Ethernet ports,

感謝所有製造這台計算機的艱苦工作的人。一切都立刻起作用了。但是我用Linux薄荷來假裝它，因為我不喜歡Windows。

Fantastic value and performs great. Surprised me how instant everything runs upgrading from my desktop pc that will not upgrade to windows 11. Spot on as advertised, bought in the uk.

I have not yet received the invoice. FedEx is trying to charge the item to a private individual's account, which is a significant loss for me. I couldn't find any way to make a corporate purchase on the website, so I entered the company name and tax number in the billing information field next to the person's name, but it seems that this was ignored. In addition, the website does not indicate that the purchase is not being made within the EU, which means that customs duties and VAT are added to the prices. I think this is misleading. I cannot comment on the product yet, as I will receive it in about a week, assuming I can somehow arrange customs clearance by then.

Very good product. The only problem is they takes 7 days to dispatch the delivery.

Was surprised when I recieved an email asking me to review this product. Surprised because I ordered it 17 days and it still hasn't been delivered yet.Don'tbuy direct from this company. If the price is similar, but it from Amazon or somewhere else. You will be waiting weeks for anything you try purchase from the German version of this business
