Name: GMKtec NucBox M3 Ultra Intel® i7-12700H
Brand: GMKtec
SKU: M3 ULTRA-2-00U
Price: 299.99 EUR
Availability: InStock

description
specification

description

specification

No.	element	specification
	Processor (CPU)	12th Generation Intel® Core™ i7 processor, 14 cores, 20 threads, Intel 7 nm manufacturing, max. Turbo clock speed 4.7 GHz; 24 MB cache; TDP 45W
	CPU Modell	I7-12700H
	CPU socket/packaging	FCBGA1744, package size 50mm x 25mm
	Graphics processing unit (GPU)	Intel® Iris® Xe Graphics eligible, max. 1,4 GHz
	Execution units	96 execution units (basic building blocks of the Intel graphics architecture, optimized for multithreading and high throughput performance)
	RAM delivery	SO-DIMM*2, DDR4 3200 MT/s, 16GB/32GB, dual-channel required; motherboard does not support DDR5
	Maximum RAM	SO-DIMM*2 maximum 64GB supported
	Memory (ROM) delivery	M2 SSDs*2, NVMe (PCIe 3.0), 512GB/1TB; motherboard supports PCIe 4.0
	Internal memory expansion	M.2 2280 PCIe expandable up to 8TB; M.2 SATA/PCIe x4 2242 expandable up to 8TB; dual SSD slots
	Performance modes	Silent Mode 28W, Balanced Mode 35W, Performance Mode 45W, Peak Power 45W
	Display	No display installed
	Graphic output	Via Dual HDMI + Type-C, supports up to 4K resolution
	Network	WiFi 6 Realtek 8852BE 802.11a/b/g/n/ac/ax
	WiFi speed	1201 Mbps, supports up to 12 devices simultaneously
	Bluetooth	Bluetooth 5.2
	power supply	Built-in button cell
	charger	DC IN (5,5/2,5mm), 20V/5A, 100W
	connections	USB-A: USB3.2 Gen2 2 (front), USB3.2 Gen2 1 + USB2.0 *1 (rear)
	USB-A transfer speed	USB3.2 Gen2 up to 10Gbps, USB2.0 up to 480Mbps
	Video output	HDMI *2, 4K@60Hz
	Type-C connector	1x, supports DP and data transfer
	Audio connection	3.5 mm jack, CTIA standard
	Ethernet port	LAN (RJ45) *1, supports 2500M/1000M/100M/10M, Intel i226 chipset
	keyboard	Supports external keyboard
	Status display	White power LED, button and LED integrated
	Dimensions	114mm x 106mm x 42,5mm
	Weight	430 Grams
	color	gray-black
	Surface processing	Metal frame with grey sandblast oxidation, tempered glass on top, plastic base

-

Feature In Media

GMKtec M3 Ultra

Intel® Core™ i7-12700H

14 cores (6 performance + 8 efficiency cores), 20 threads, up to 4.7 GHz max turbo clock speed.

Intel® Iris® Xe Graphics

Text

Ultra-Fast Dual M.2 Storage

PCIe 3.0 M.2 2280 and M.2 SATA/PCIe x4 2242, each expandable up to 8TB.

Dual DDR4 3200MT/s

Max to 64GB

Triple Screens Display

HDMI*2+Type-C

WIFi 6+BT5.2

Text

Twin-Turbofan-System

Cooling Fan*2

Windows 11 Pro preinstalled

Compatible with Win 11 Pro, Linux,Ubuntu

Intel® Core™ i7-12700H

14 cores (6 performance + 8 efficiency cores), 20 threads, up to 4.7 GHz max turbo clock speed.

Intel® Iris® Xe Graphics

Text

Ultra-Fast Dual M.2 Storage

PCIe 3.0 M.2 2280 and M.2 SATA/PCIe x4 2242, each expandable up to 8TB.

Dual DDR4 3200MT/s

Max to 64GB

Triple Screens Display

HDMI*2+Type-C

WIFi 6+BT5.2

Text

Twin-Turbofan-System

Cooling Fan*2

Windows 11 Pro preinstalled

Compatible with Win 11 Pro, Linux,Ubuntu

Power Meets Efficiency

12th Gen Intel® Core™ i7-12700H

4.7GHz Max Turbo Frequency

14 Cores(6 Performance Cores + 8 Efficient Cores)

20 Threads, 24MB L3 Smart Cache

Cinebench R23 Multi-Core Score

Intel® Core™ i7-12700H

Text

16745

Intel® Core™ i9-12900H

Text

16555

Text

AMD Ryzen™ 7 8845HS

Text

15930

Text

M3 ultra delivers outstanding gaming performance, running popular titles smoothly at 1080P resolution. Whether it’s lightweight AAA games or competitive online titles, it provides players with a fluid, stable experience and crisp, detailed visuals.

With its powerful 64GB memory, the M3 Ultra ensures smooth operation of Excel, Photoshop, and other office software, allowing you to manage multiple tasks with ease. Whether handling large spreadsheets or editing high-resolution images, the system responds quickly, boosting your work efficiency.

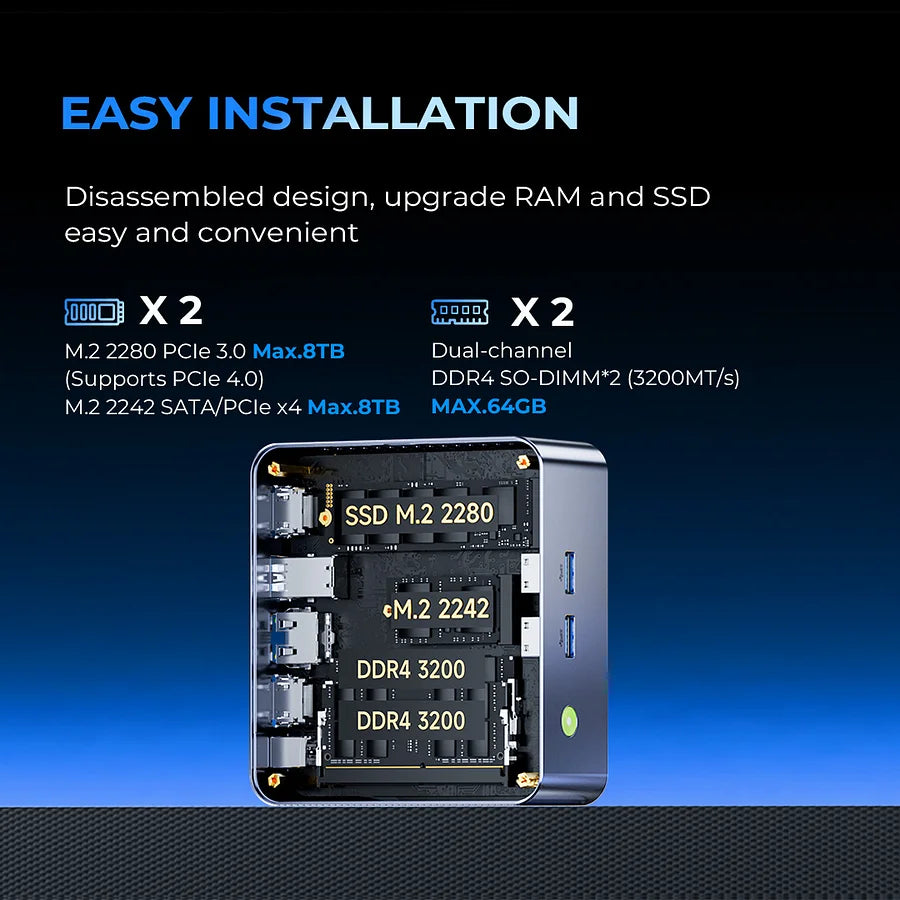

Disassembled design makes upgrading RAM and SSD easy and convenient, supporting M.2 2280 PCIe up to 8TB, M.2 2242 SATA/PCIe x4 up to 8TB, and DDR4 3200MT/s Dual Channel SO-DIMM*2 up to 64GB.

The GMK M3 Ultra utilizes an upgraded copper cooling fan and multiple exhaust ventilation design, combined with turbo cooling and two-way convection vents to effectively improve heat dissipation efficiency. At the same time, fan noise is as low as 35 decibels, providing a quiet and efficient cooling experience.

Dual LAN (RJ45) – network ports, compatible with Linux, Ubuntu, ESXi and VMware

DUAL 2.5G HIGH SPEED ETHERNET

Read/write speed

2.5Gbps LAN

Text

2.5× Times

1000MbpS LAN

Text

Supports 3-screen 4K display

2*HDMI(4K@60Hz)

1 × Type-C support DP/DATA

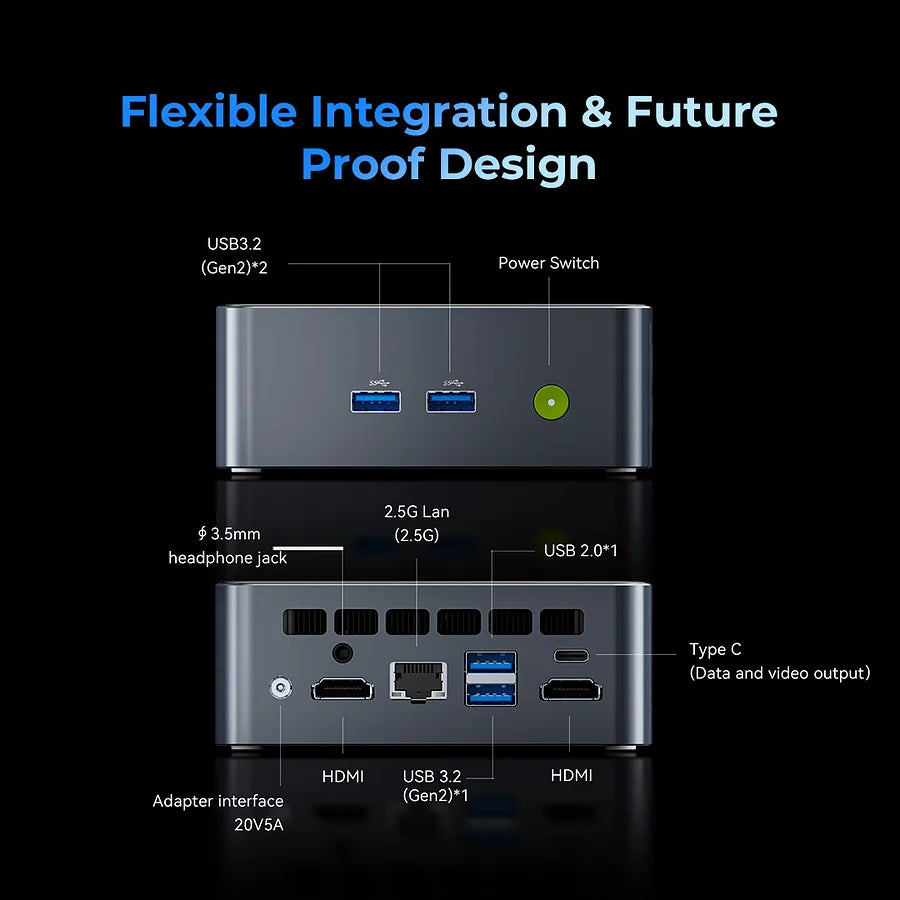

The M3 Ultra features a robust l/0 setup with USB3.2*3+USB2.0*1+HDMI*2+Type-C*1+LAN(RJ45)*1+∮3.5mm , ensuring seamless connectivity for multiple monitors and accessories.
