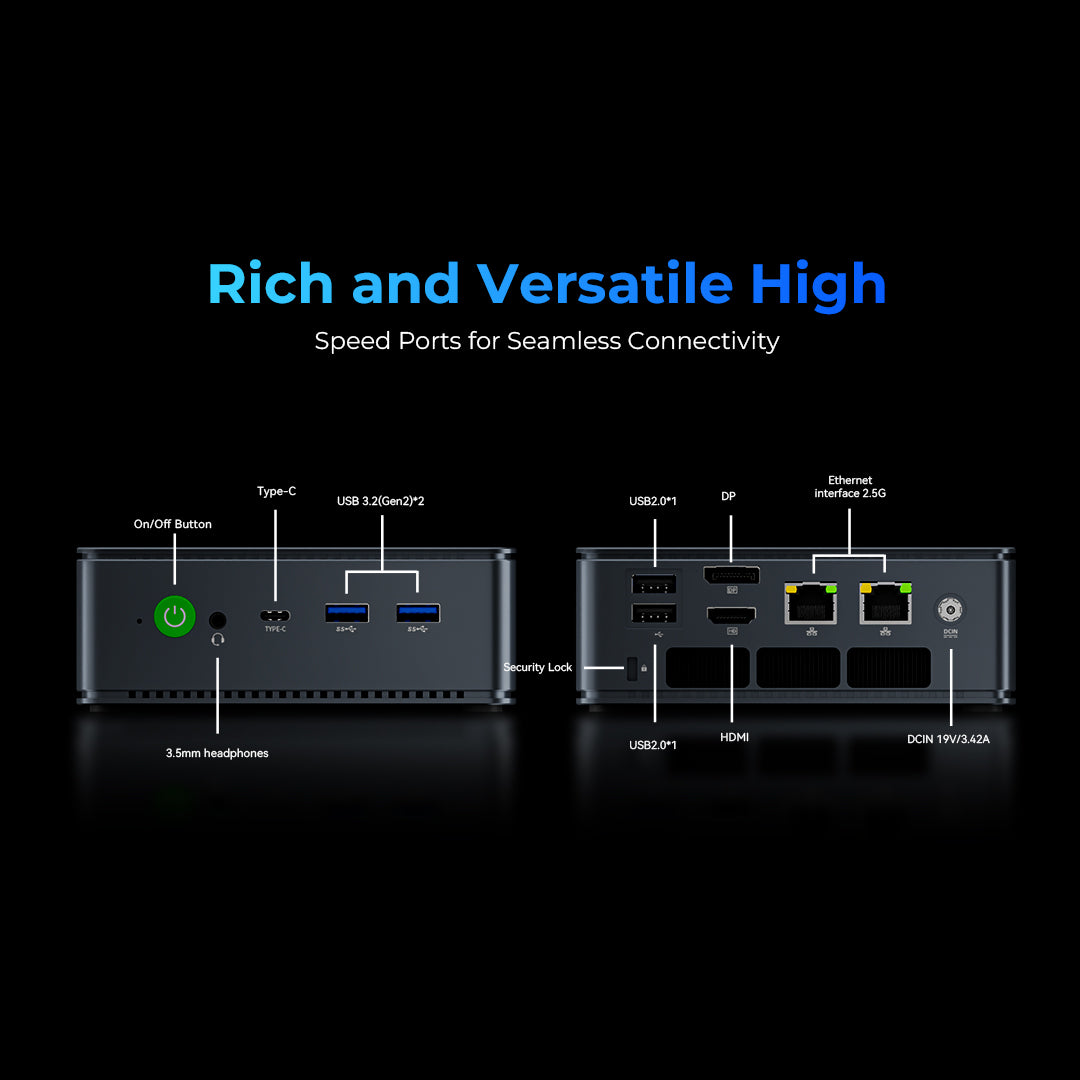

USB 3.2 × 2 + USB 2.0 × 2 + HDMI 2.0 (4K@60Hz) + DisplayPort × 1 (4K@60Hz, up to 8K@60Hz) +Type-C(USB 3.2 Gen2.PD,DP) + 3.5mm Audio Jack + Dual 2.5G LAN (RJ45)
19

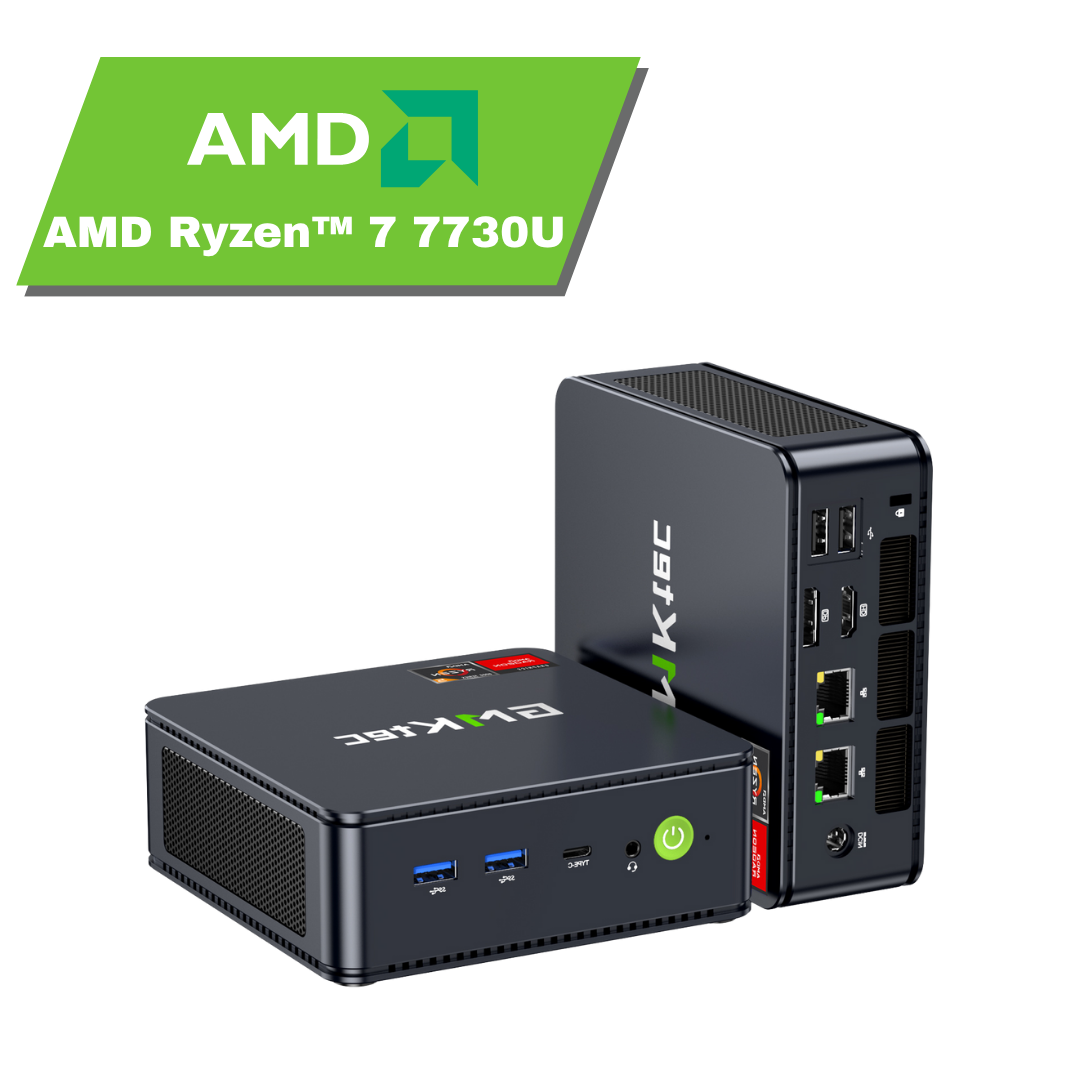

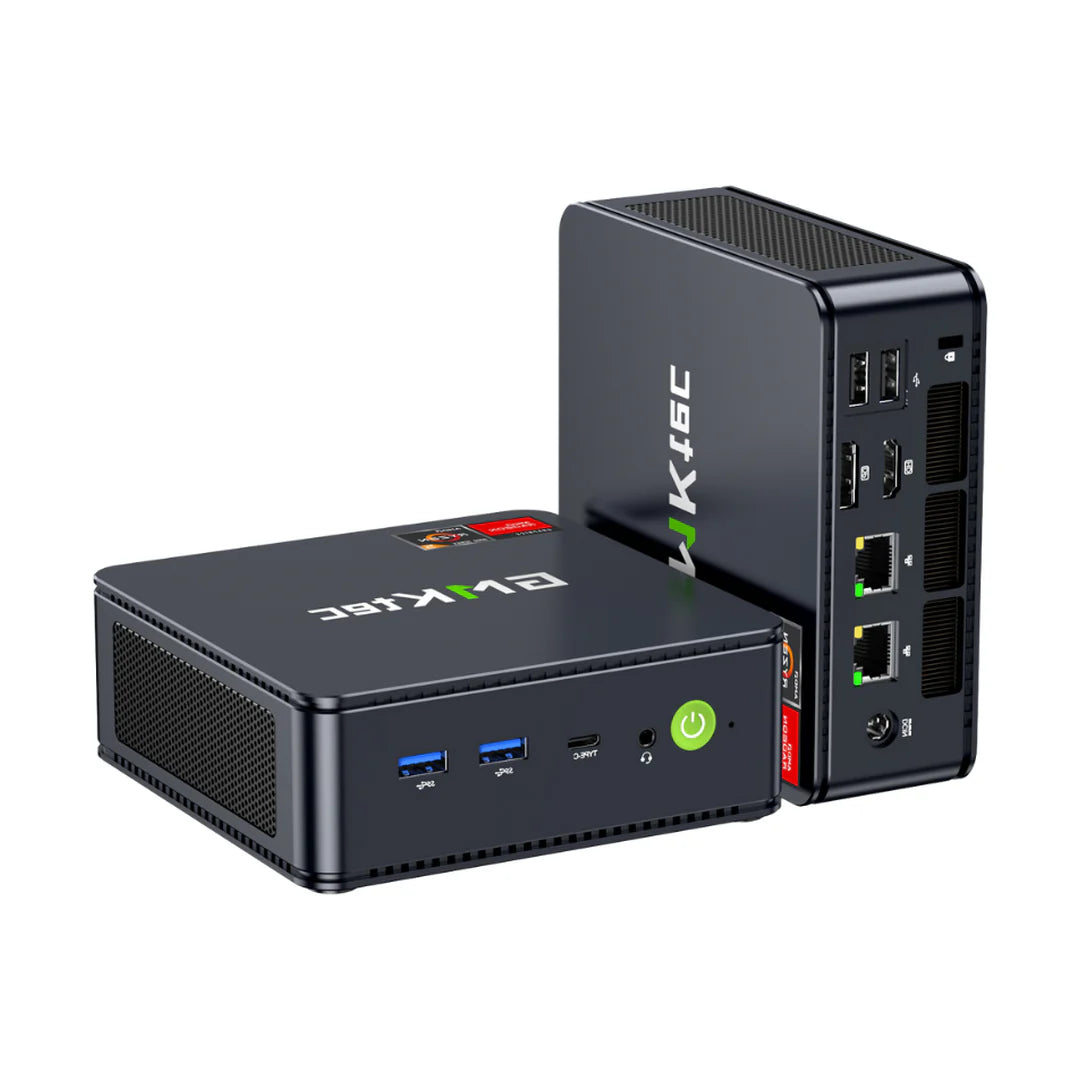

NucBox M5 Ultra
AMD Ryzen™ 7 7730U
8 cores 16 threads, TSMC’s 7 nm FinFET process, Max Frequency 4.5GHz
AMD Radeon™ Graphics
8 core 2000MHz frequency
SO-DIMM×2, DDR4 3200MT/s,
(Dual-channel), max support 64GB

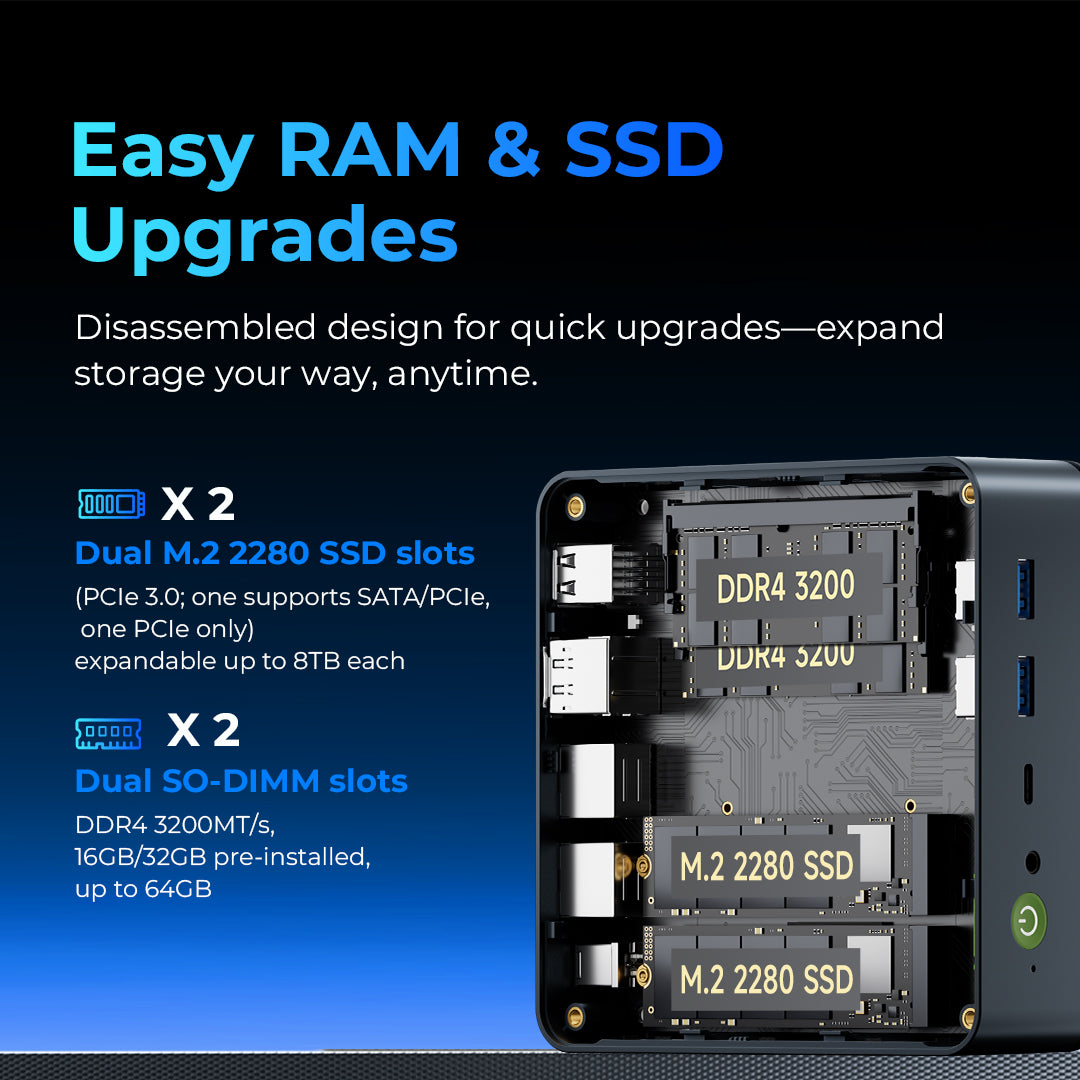

Dual M.2 SSD slots
Storage expansion: up to 16TB (1× SATA/PCIe 3.0 ×4, 1× PCIe 3.0 ×4)
Tripe Screens 8K Display
HDMI+DP+type-c outputs, supporting up to 8K resolution
WiFi 6E + BT5.2
WiFi 6E (RZ616, 2.4Gbps),Bluetooth 5.2
2 LAN-Ports (2,5Gbps)
Dual-fan system design
AMD Ryzen™ 7 7730U
8 cores 16 threads, TSMC’s 7 nm FinFET process, Max Frequency 4.5GHz
AMD Radeon™ Graphics
8 core 2000MHz frequency
SO-DIMM×2, DDR4 3200MT/s,
(Dual-channel), max support 64GB
Dual M.2 SSD slots
Storage expansion: up to 16TB (1× SATA/PCIe 3.0 ×4, 1× PCIe 3.0 ×4)
Tripe Screens 8K Display
HDMI+DP+type-c outputs, supporting up to 8K resolution
WiFi 6E + BT5.2
WiFi 6E (RZ616, 2.4Gbps),Bluetooth 5.2
2 LAN-Ports (2,5Gbps)
Dual-fan system design
Power Meets Efficiency
AMD Ryzen™ 7 7730U Processor
MAX4.5G | Base Frequency:2.0GHz
8 Cores (High-performance Zen architecture）
16 Threads | TSMC 7nm FinFET Process

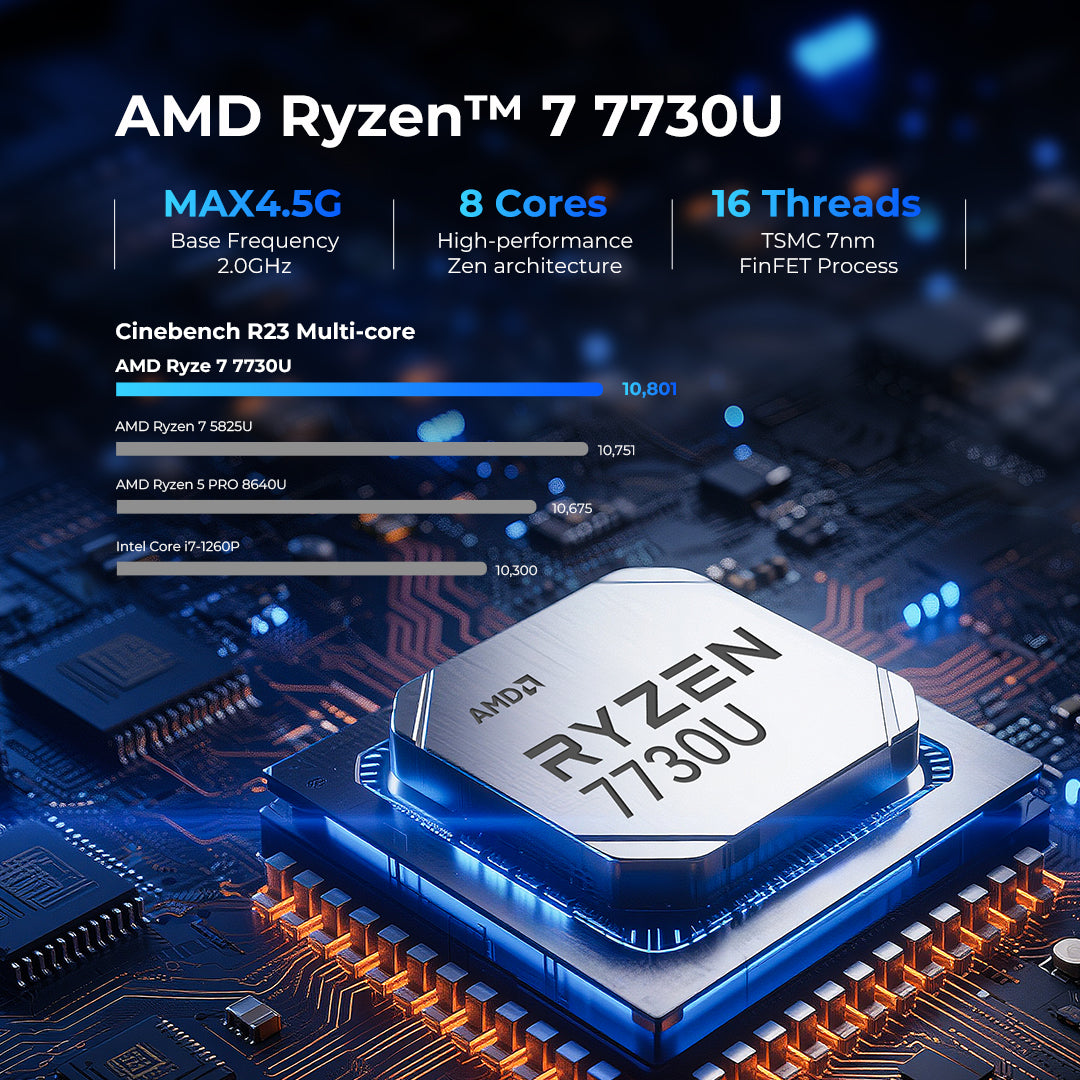

Cinebench R23 Multi-Core Score（For reference only）
AMD Ryzen™ 7 7730U
AMD Ryzen 7 5825U
AMD Ryzen 5 PRO 8640U
Intel Core i7-1260P
Supports 3-screen Up to 8K display
1 × HDMI2.0 (4K@60Hz)
1 × type-C support
1 × Display Port 1.4 (4K@60Hz), maximum support up to 8K 60Hz

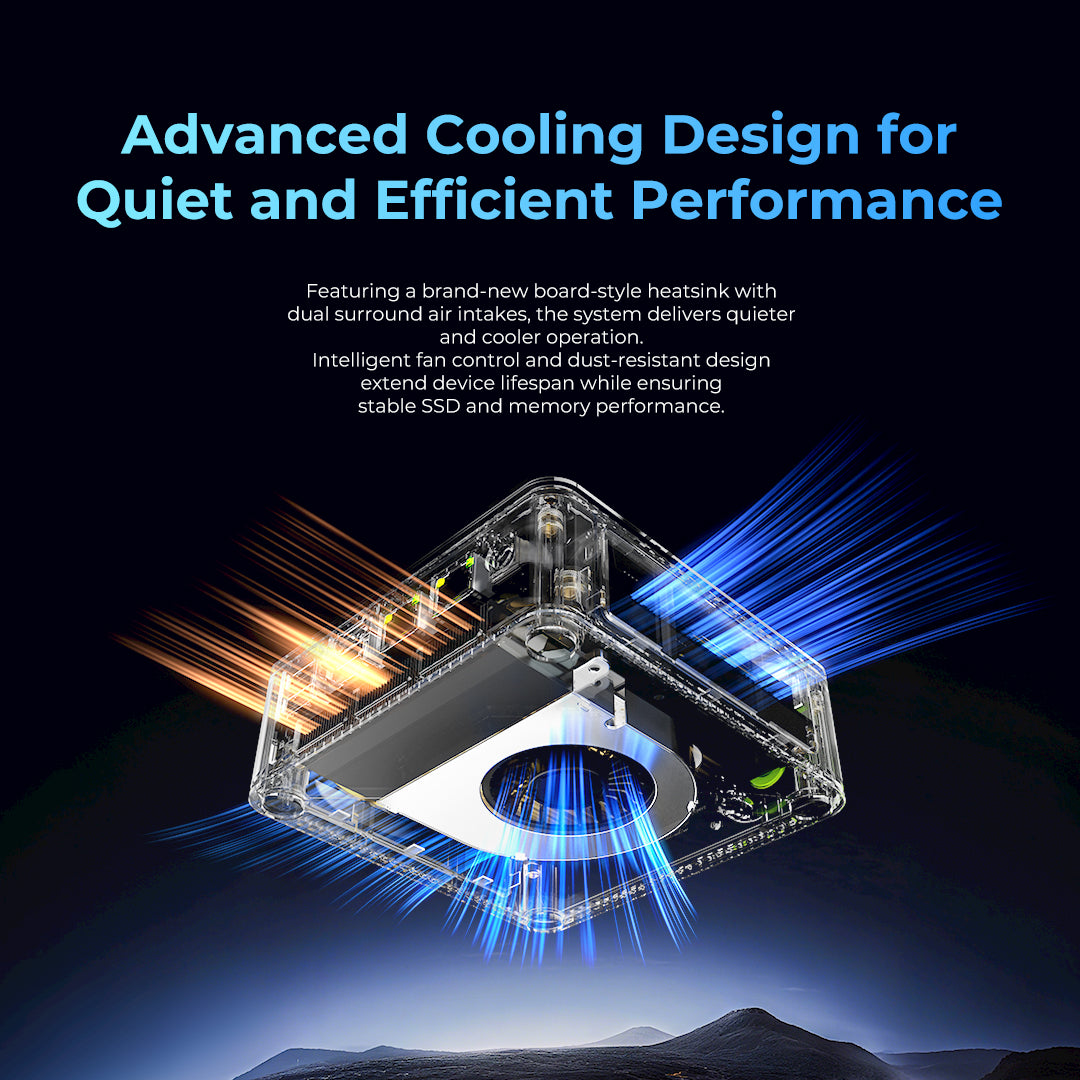

Advanced Cooling Design for Quiet and Efficient Performance
Featuring a brand-new board-style heatsink with dual surround air intakes, the system delivers quieter and cooler operation. Intelligent fan control and dust-resistant design extend device lifespan while ensuring stable SSD and memory performance.
